Product Details:
Payment & Shipping Terms:
|
| Laser Wavelength: | 1064nm | Working Temperature: | 5-40℃ |
|---|---|---|---|
| Power(w): | 50W/100W/200W/500W | Scan Width: | 1-150mm |
| Feature: | Sudsing / Foaming | Dimension(l*w*h): | 760*780*790 |
| High Light: | 500W Laser Rust Cleaning Machine,50mJ Laser Rust Cleaning Machine,50mJ 500 watt laser cleaner |
||

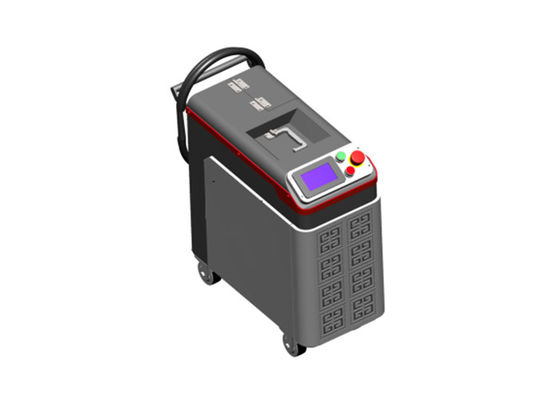

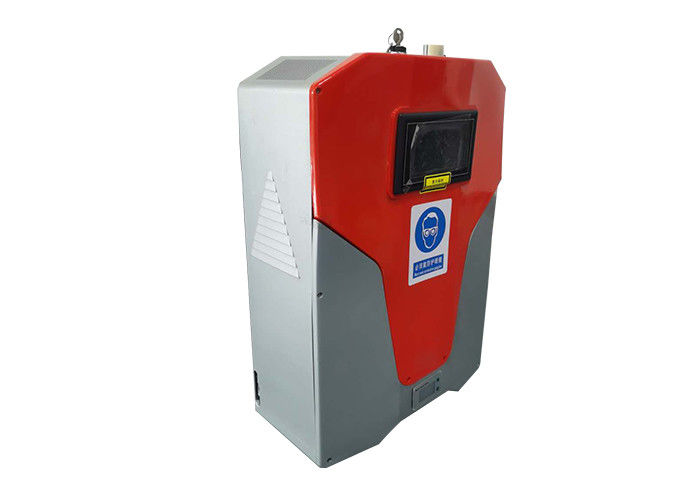

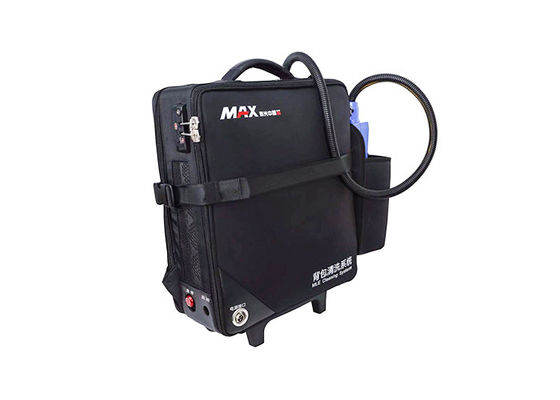

50mJ Fiber Laser Rust Cleaning Machine Water Cooling 500 Watt Laser Cleaner
Mini 50w Portable Fiber Robot Metal Oil Laser Cleaner Rust Paint Removal Price Laser Cleaning Machine
Parameter
| Model | MW-LC60 | MW-LC100 | MW-LC200 | MW-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 10M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 2 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 50-500KHz | 50-200KHz | 20-50KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
| Dimension | 450*350*500 | 650*350*560 | 900*600*1100 | 1600*1100*1800 |
| Weight | 30Kg | 40Kg | 120Kg | 300Kg |
| Beam width | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Comparison with Traditional Clean Methods:
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Description
laser descaling machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.
Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.

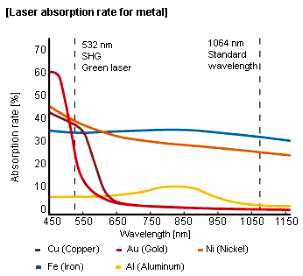

Laser absorption rate for metal
|
Based on the metal surface cleaning customized laser, according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage. Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning. |
 |
