| Material: | Metal / Coil,stone,Rust Oxide / Painting Cotaing,Metal/stone/plastic,metal | Power(w): | 50W/100W/200W/500W |
|---|---|---|---|
| Warranty: | 2 Years | Product Name: | Laser Cleaning Machine,laser Rust Removal Machine,Laser Cleaning Machine 50w 70w 100w High Precision Tyre/ Car/ Glass |
| Industry Used: | Orbit,Marine Industry,environmental Protection Industry,auto Parts Industry /machines Industry/mold Industry,building Cleaning | Feature: | Rust / Corrosion Inhibitor,Critical Cleaning / Residue Free |
| High Light: | 0.6 MJ Fiber Laser Cleaning Machine,20W Fiber Laser Cleaning Machine,20W laser Rust Removal |
||

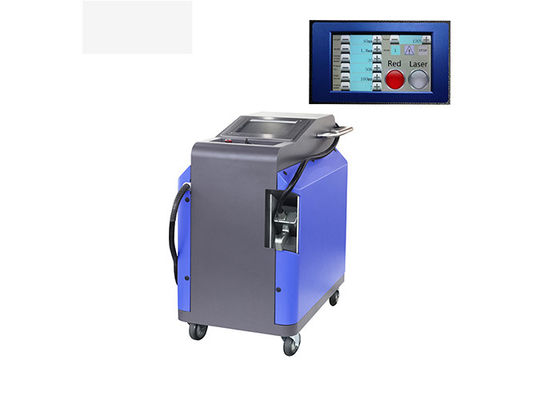

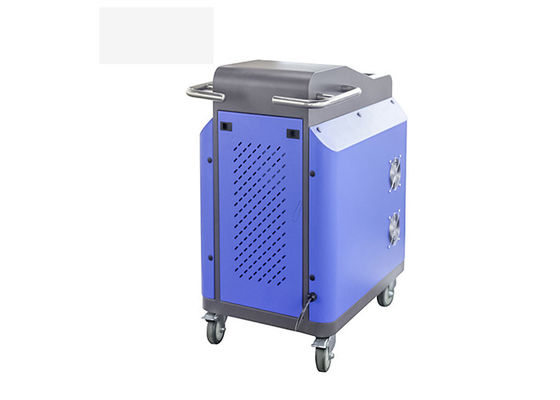

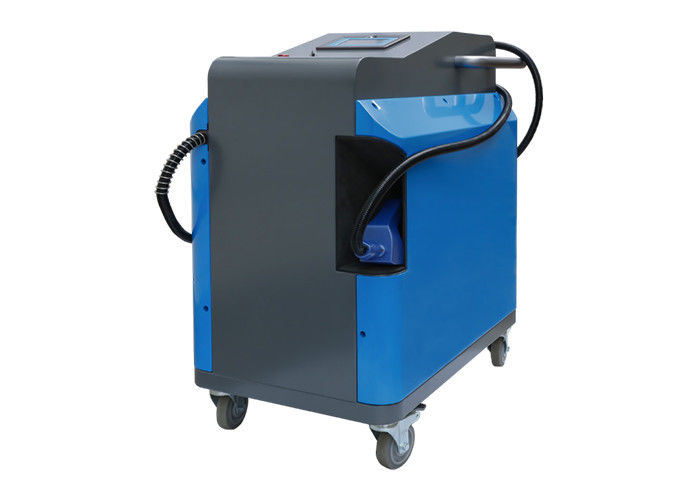

20W 0.6 MJ Fiber Laser Cleaning Machine Air Cooling Rust Removal
Mini 50w Portable Laser Metal Cleaning Machine Rust Paint Removal Machine Laser Metal Cleaning Machine
|
Laser source
|
Fiber
|
Fiber
|
Fiber
|
|
Laser power
|
20W
|
50W
|
100W
|
|
Fiber cable length
|
2 meters
|
2 meters
|
2.5 meters
|
|
Laser wavelength
|
1064nm
|
1064nm
|
1064nm
|
|
Pulse energy
|
0.6 mJ
|
1 mJ
|
1.5 mJ
|
|
Pulse frequency
|
30-60KHz
|
1-1000KHz
|
1-2000KHz
|
|
Scanning speed
|
0-7000mm/s
|
0-7000mm/s
|
0-7000mm/s
|
|
Cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
|
Dimension
|
300*160*450 mm
|
300*160*450 mm
|
300*160*450 mm
|
|
Weight
|
18Kg
|
18Kg
|
20Kg
|
|
Beam width
|
10-70mm
|
10-70mm
|
10-100mm
|
|
Optional
|
Manual
|
Manual
|
Manual
|
|
Temperature
|
5-40 ℃
|
5-40 ℃
|
5-40 ℃
|
|
Voltage
|
Single Phase 220V, 50/60HZ
|
Single Phase AC 220V,2.5A
|
Single Phase AC 220V 4.5A
|
Description
Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the
advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process. It can remove the rust , oxide, resin, oil contamination, stains, dirt, coating, plating and paint on the surface of different shape metal objects, and the stone carving surface attachment and rubber mold surface residue.
Equipment Performance
1.Two-dimensional laser cleaning with dual axis scanner, it is not easy to damage the substrate (Optional)
2. Precision cleaning, realized selective cleaning of precise location and accurate size
3. No need any chemical cleaning liquid, no consumables, safety and environmental protection
4. Easy operation, realized automated cleaning by hand-held or robotic arm
5. Fast cleaning speed, high cleaning efficiency, saving time.
6. Stable laser cleaning system, almost no maintenance requirement
