Product Details:
Payment & Shipping Terms:
|
| Cooling Mode: | Water-cooling And Protection System | Application: | Laser Engraving |
|---|---|---|---|
| Certification: | CE,SGS | Cnc Or Not: | Yes |
| Usage: | Jewelry Welding | Power: | 200W 60W |
| Max. Welding Thickness: | 0.5mm-ss | Observation: | CCD+Microscope (combined) |
| Highlight: | Microscope Mini Laser Welding Machine,90J Mini Laser Welding Machine,90J mini laser welder |
||

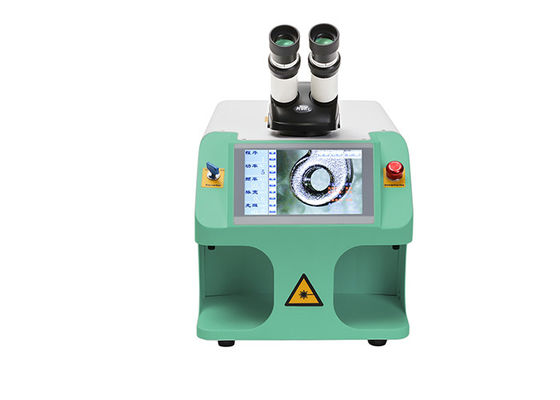

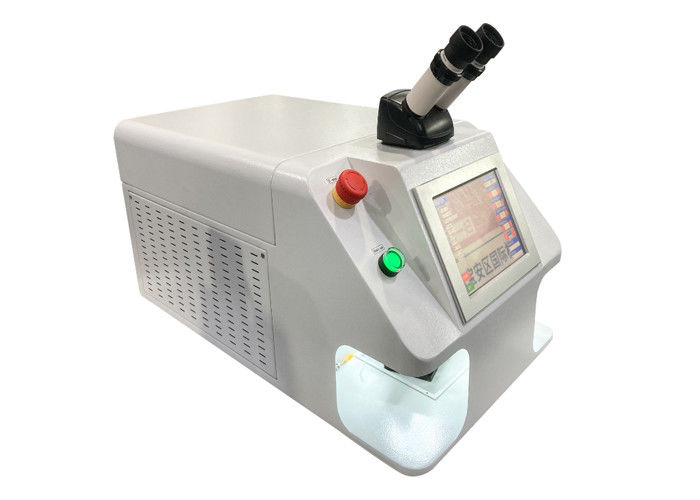

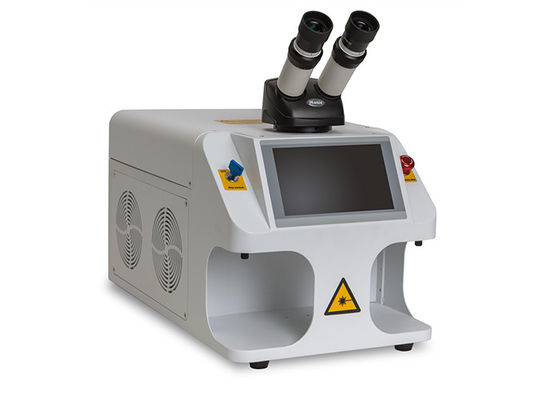

90J Microscope Mini Laser Welding Machine 60W Multifunctional
Main Features:
1. All accessories of the mini jewelry laser welder using high technology integrated technology, stable and functional.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance
5. Human-based design accords with ergonomics, no fatigue after long time working.
Used for precision welding of hardware, kitchen and bathroom industry hardware (faucet and round pipe welding, kitchen sheet metal parts, washing machine inner tube welding, etc.) and electronic industry (mobile equipment) precision hardware welding. Phone, tablet, car, etc.)
It can meet the welding of various metals, alloys, steel, Kovar alloy and other same materials, as well as the welding of copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper andother dissimilar metals.
|
Max. laser power |
60W |
| Laser wave-length | 1064nm |
| Single pulse energy | 90J /110J |
| Pulse width | 0.3 - 20ms |
| Welding frequency | 0.5 - 100Hz |
| Laser Spot Dia: | 0.2-3.0mm |
| Control system | micro-computer |
| Power consumed | 6KW |
| Electrical source | 220V10%/60Hz or 50Hz/30A |
| Cooling system | Air Cooling Or Water Cooling |
Samples:
