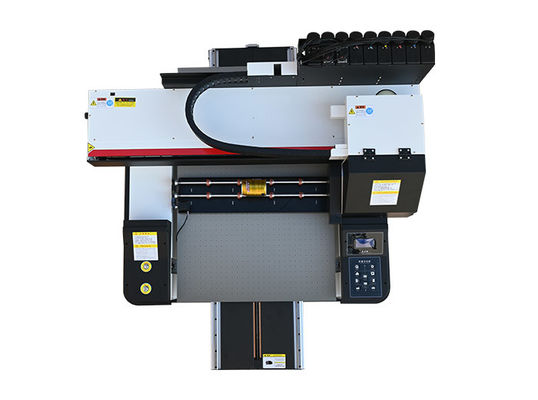

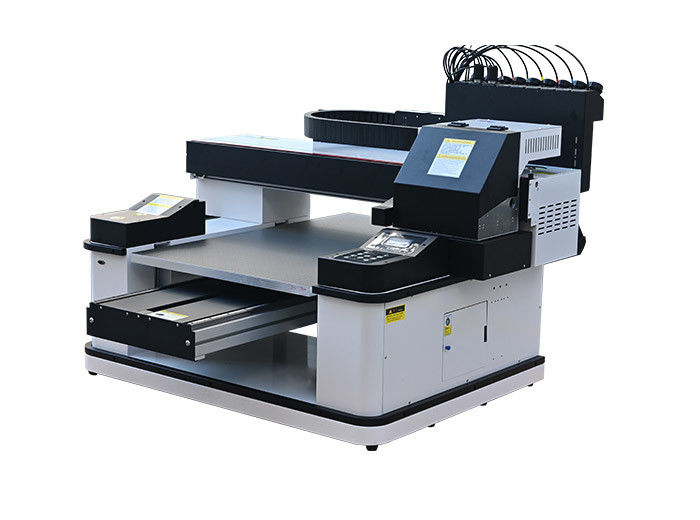

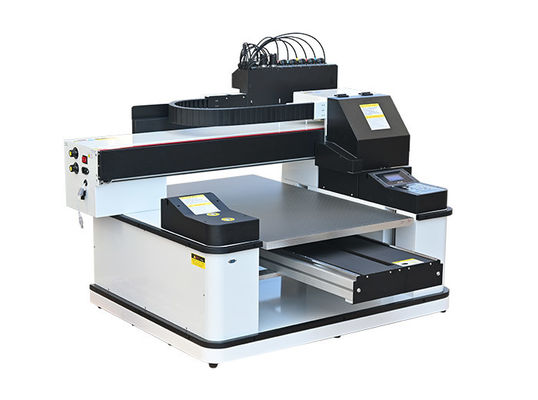

Multifunction Small Format UV Printer 600*900mm Intelligent Platform Lift

Multifunction Small Format UV Printer 600*900mm Intelligent Platform Lift

Double Head Multifunction 6090 Inkjet Printing Machine Large Format Uv Printer

Parameter

Main features

1. Head moves over print area- flatbed stays stationary;

2. Allows Inline Printing (white & color in the same pass);

3. Allows 3d texture effect printing;

4. The panel functions including: manual flatbed height adjusts; auto-height adjust;

5. Easy to operate,operator can learn and use it professionally within 1-2 hours;

6. Ink basket with white ink circle system and low ink level alert is located on top of the printer;

7. The prnter has a built-in vacuum-bed, which holds lightweight products in place during printing;

8. Allows different white color output, including background,edge and mirror (white lay down after

color);

9. It can print on almost all type of material,such as metal,glass,crystal,tile ceramic,acrylic,phone

case, PVC etc.;

10. Configuration with industry servo motor and liner guider, which guaranty running smoothly,stable

and fast speed.

FAQ

1. A single nozzles can not be made out of ink?

Replacing the nozzle, replacing the sprinkler data line or the nozzle switch board, inserting the data line of the nozzle, repairing the ink supply system, and replacing the main plate

2. all the spray head is not out of ink?

Repair the power, replace the head card, replace the main board, reinstall or replace the decoder, reinsert or replace the fiber line

3. Broken line?

Improve the temperature of the environment, adjust the voltage of the nozzle, clean the nozzle with the cleaning liquid and replace the ink

4. Unable to discharge material?

Replacement of photoelectric switch, replacement of discharge motor or rewiring

5. Middle wrinkle when walking?

Re feed, adjust the parallelism of the feed wheel and the feed wheel shaft, and adjust the pressure of the press wheel

6. No moving head or software part function can't be used?

Replacement of main board, rewiring, reconnection or replacement of drive, replacement of motor or rewiring

7. Stop spray?

Replace the decoder and grating, adjust the position of the decoder to the middle of the decoding bar, replace the motor, or change the material to the small volume

8. Inability to provide ink?

Replace the cartridge inductor, replace or reconnect, replace the main board, replace the ink pump, and replace the filter

9. For ink supply?

Replacement of the main board and rewiring

10. The print test bar and the diagram are not normal?

Change the grating or decoder, reconnect the fiber line, replace the driver, and replace the main board
