Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Package: | Wooden Case |
|---|---|---|---|
| Ink Color: | CMYKWW | Brand: | Maxwave |
| Print Head: | Ricoh Gen5 | Max Print Height: | 100mm/Adjustable |
| High Light: | 250*130cm Large Format UV Printer,63 sqm/H Large Format UV Printer,250*130cm wide format uv printer |
||

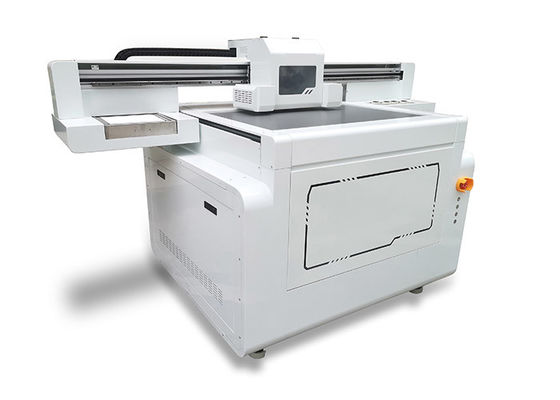

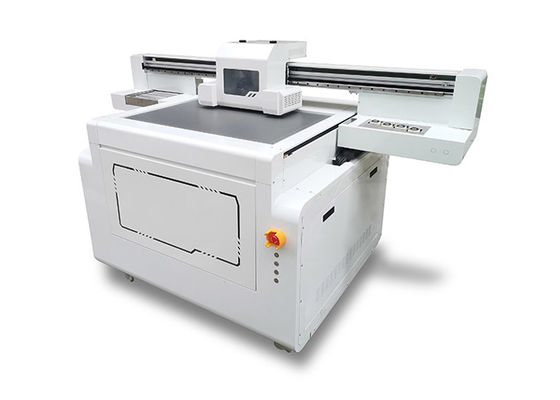

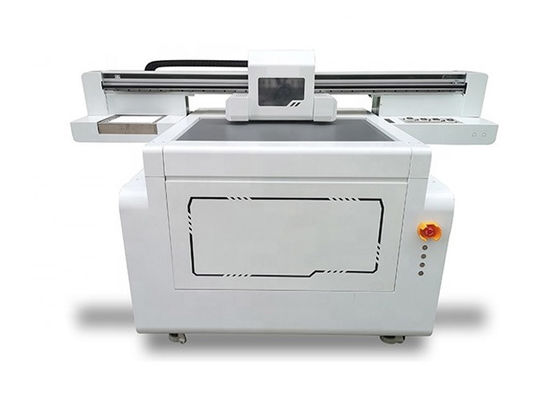

250*130cm 3D Large Format UV Printer 63 Sqm/H For Ceramic Acrylic
Large Format UV LED 3D Glass Ceramic Wood Acrylic Bottle Cardboard Cylinder Flatbed Printer Printing Machine
Parameter
|
Model NO. |
MW-0906E |
MW-0906M |
MW-0906S |
MW-2513E |
|
|
Printhead |
2 or 3 Epson DX8 |
1 Epson L1440+ 1/2 DX8 |
2/3 Epson i3200-U |
2/3 Epson i3200-U |
|
|
Resolution(dpi)
|
1440dpi Max |
1440dpi Max |
2400dpi Max |
1440dpi Max |
|
|
Media |
Max Size |
90*60CM |
250*130CM |
||
|
Thickness |
Max 12cm
|
Max 10cm |
|||
|
Types |
Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, Etc. |
||||
|
Ink |
Type |
LED UV Ink |
|||
|
Color |
CMYK,Lc,Lm+White+Varnish |
CMYK+White+ Varnish |
CMYK,Lc,Lm+White+Varnish |
||
|
Capacity |
500ml/ bottle |
||||
|
Dry System |
UV-LED light system |
||||
|
Speed |
Draft |
9 sqm/h (Color+White) |
15 sqm/h (Color+White) |
30 sqm/h (Color+White) |
63 sqm/h ( For 3 heads, CMYK) |
|
Standard |
6 sqm/h (Color+White) |
9 sqm/h (Color+White) |
23 sqm/h (Color+White) |
32 sqm/h ( For 3 heads, CMYK) |
|
|
Quality |
3 sqm/h (Color+White) |
5 sqm/h (Color+White) |
15 sqm/h (Color+White) |
21 sqm/h ( For 3 heads, CMYK) |
|
|
Vacuum platform |
Equipped. High-power independent vacuum system, much more practical and functional than the vacuum system with small-power internal vacuum fans. |
||||
|
PC Operation System |
Windows 7/XP/10 |
||||
|
Environment |
Temperature: 20-28°C, Humidity: 40-60% |
||||
|
Rip Software |
MainTop (Standard), PhotoPrint (Optional), Onyx (Optional) |
||||
|
Power |
AC220V, 50/60Hz |
||||
|
Size & Weight |
Machine |
L2200 x W1250 x H1400 mm / 350KG |
L3700 xW2300 x H1550 mm / 900KG |
||
|
Packing |
L1820 x W1780 x H1500 mm / 400KG |
L3700xW2300xH1600mm / 1000KG |
|||
Features
Japanese imported Epson printer head for industrial production
CMYK W W printing 3D embossed effect with high quality and high speed
Auto height detection technology to detect print media thickness automatically
Automatic anti-static design to avoid dust ink drops flying Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material
Computer stand to support connection with printer easily
Big ink tank containeously working, fill ink without stop Ink alarm system to provide sign for refill the ink Solid steel body structure and customized design beam for stable working
UV LED lamp made in Korea for long life working more than 30000hrs
Printing Samples
FAQ
Q1: What materials can UV printer print?
A: UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2: Can UV printer print embossing 3D effect?
A: Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3: Can A3 uv flatbed printer do rotary bottle and mug printing?
A: Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4: Does printing materials must be sprayed a pre-coating?
A: Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5: How can we start to use the printer?
A: We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6: What about the warranty?
A: We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7: What's the printing cost?
A: Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8: Where can I buy the spare parts and inks?
A: All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9: What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
