Product Details:
Payment & Shipping Terms:
|
| Usage: | Cloths Printer,Card Printer,Label Printer,Paper Printer | Resolution: | 4PASS, 8PASS,16PASS, 32PASS |
|---|---|---|---|
| Industry: | Home Use, Printing Shops, Advertising Company, Phone Case | Dimensions(L*W*H):: | L1050*W1960*H1100mm |
| Ink Type: | UV Ink | Print Head: | 3 Pieces XP600/ 4 TOSHIBA CE4-M |
| High Light: | 32PASS High Speed Inkjet Printer,XP600 High Speed Inkjet Printer,UV A4 Flatbed printer |
||

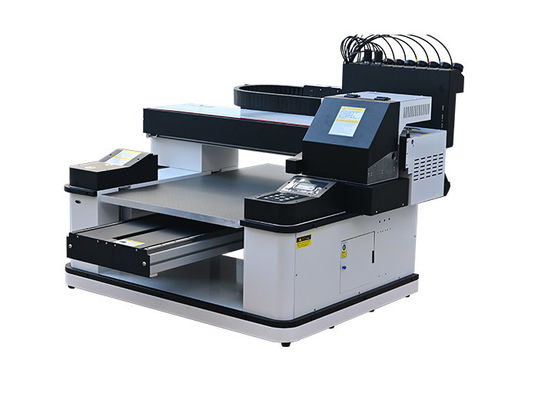

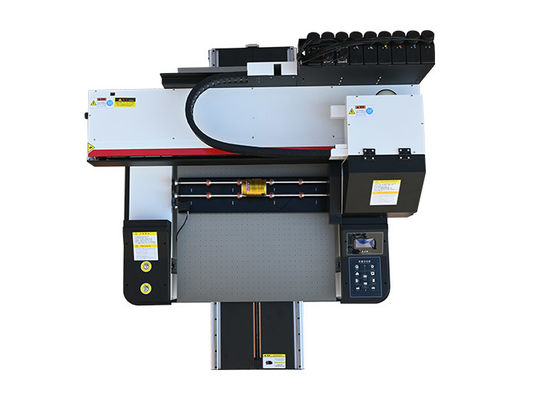

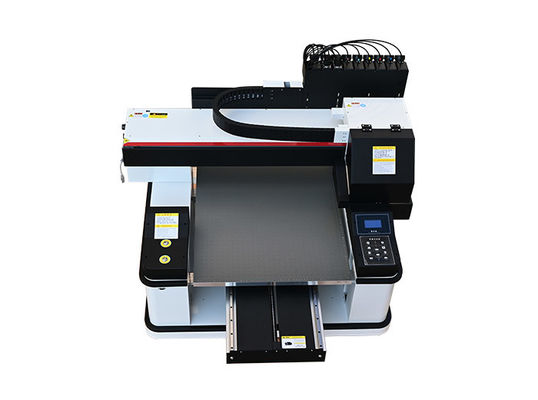

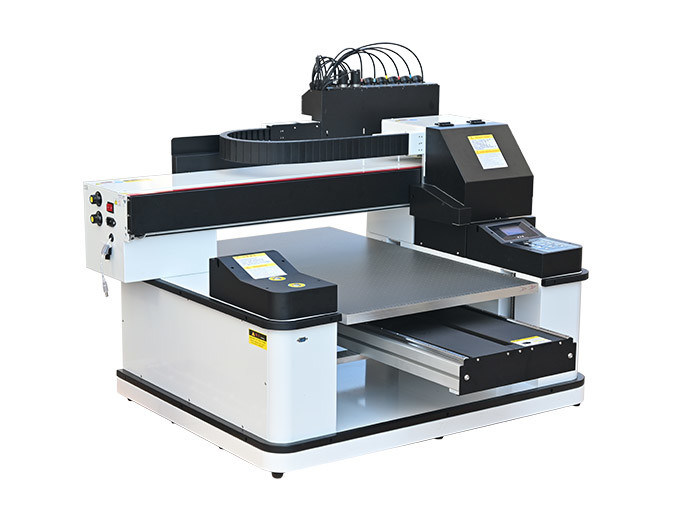

32PASS Sinkable Platform High Speed Inkjet Printer UV Flatbed XP600
60*90cm Digital Inkjet Glass Wood Leather Plotter Uv Flatbed Printer XP600 Print Head Uv Printer
|
Product Parameters
|
|||
|
Model
|
MW-6090 UV
|
||
|
Printing Table
|
Sinkable Platform
|
||
|
RIP Software
|
Photoprint, Maintop
|
||
|
Color Configuration
|
6 color (C+M+Y+K+LC+LM)
|
||
|
High Speed Mode
|
4 sqm/h(4pass)
|
||
|
Production Mode
|
3.5 sqm/h(4pass)
|
||
|
High Resolution Mode
|
2.5sqm/h(8pass)
|
||
|
Operating System
|
Windows7 Windows 10
|
||
|
Image format
|
PNG JPG JPEG TIFF
|
||
|
Printhead Height
|
15cm printhead height adjustable
|
||
|
Material type
|
Personalized gifts, mobile phone cells, Title, Glass, Metal painting, Signboard,Paper case, Wine bottle, Acrylic board, PVC board etc
|
||
|
Guide
|
THK linear guide from Japan
|
||
|
Motor
|
Leadshine intergrated motor
|
||
|
Output port
|
USB 2.0
|
||
|
Operation environment
|
Temp20℃-35℃, Humidity:35%RH-70%RH
|
||
|
Input Power
|
AC110V±10%,AC220V±10% ,50 / 60±1HZ', 100w-1200w
|
||
|
L1810MM*W1700MM*H890MMMachine Dimension/Weight
|
L1665MM*W1560MM*H720MM / Net Weight 225 kgs
|
||
|
Package Dimension/Weight
|
L1810MM*W1700MM*H890MM/ Gross Weight: 300kgs
|
||
Advantage
1. Automatic sensing up and down system, 15CM printhead height adjustable.
2. Low ink volume warning
3. White Ink circulation system, make the ink flow more smoothy.
4. Original system for removing staic electricity,effectively removing static electricity, drop ink interference to a minimum, prevent floating ink.
5. Adopting imported Japanese THK linear guide, high precision and stable. Adopting German brand Chain, flexible, high speed and high efficiency .
Main Features
1. For printing a variety of personalized gifts, especially cylindrical gifts.
2. Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving
3. Unique 3D texture output option .
4. Strong structure, Ensure the printer for long life working.
5. High precision led uv printer/digital uv printer/inkjet uv printer.
6. Environmental uv ink, 3 XP600 Printhead
7. Mini UV printer.Print size 60*90cm.
8. For printing gifts, crafts,cup,mobile phone cell, glass, acrylic, PVC,boards ,etc.
Especially cylindrical personalized gifts.
