Name: Print head
Model: 1390
Eight colors, more refined, more realistic.
|
Product Details:
Payment & Shipping Terms:
|
| Ink Type: | Textile Ink,Pigment Ink,soft Ink | Condition: | New |
|---|---|---|---|
| Voltage: | 220V/110V | Usage: | Cloths Printer |
| Weight: | 60kg | Brand: | Maxwave |
| High Light: | 16pass DTG T Shirt Printer,XP600 DTG T Shirt Printer,16pass dtg t shirt printing machine |
||

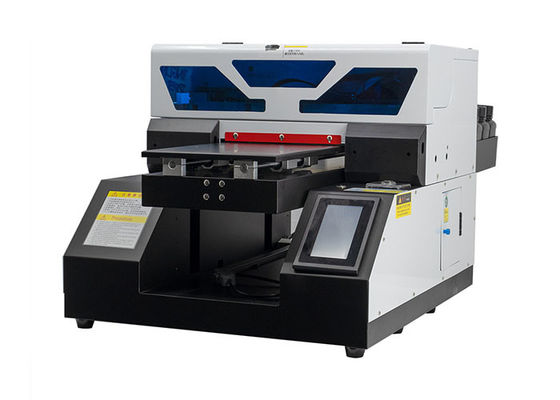

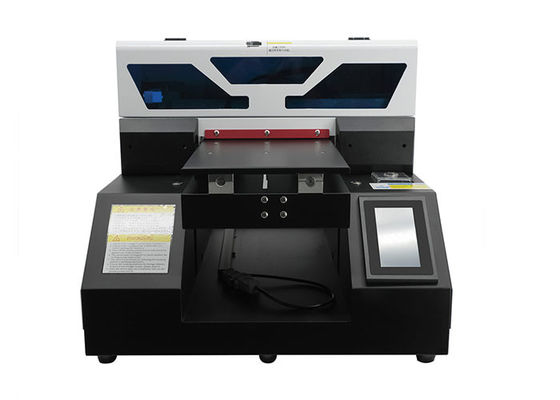

A3 Textile Fabric DTG T Shirt Printer 16pass XP600 Head For Garment Shops
A3 Size Textile Fabric Sweater Cloth Tshirt Printing Machine Dtg Printer
Parameter
| Printer Model : | DTG Printer |
| Printer Size : | 69*73*43cm |
| Printer Weight : | 56kg |
| Printer Color : | White / Customized |
| Printing Way : | Bidirectional or Unidirectional |
| Printer Head model : | DX9 Epson XP600 |
| Ink Color (Textile ink) : | C M Y K + W W W W W W |
| Print Resolution : | 2880dpi 16pass, 12pass, 8pass |
| Max. Printing size : | 30cm*40cm |
| Max. Media thickness : | 10cm |
| Printing Speed : | 90s / A4size |
| White Ink Circulation system : | Automatic white ink circulation |
| Printing Software : | Newest RIprint & PrintExp |
| Height Adjustment : | Automaic / Manual |
| Operate System : | Window 7, 8, XP, 10 |
| Pringing Material: | T shirt, Canvas bag, Socks and other textile products etc. |
| N/G. Weight : | 56kg / 80kg |
Main features
Name: Print head
Model: 1390
Eight colors, more refined, more realistic.
Name: Ink system
White ink double circulation system to protect the nozzle and avoid the blockage effectively.
Name: ARM processor
The system uses ARM microprocessor and FIFO memory as the core, and realizes the logic control of the whole underlying data acquisition system by using programmable logic device. The whole system is open and extensible, and the software has reconfiguration, and the module can be modified or added.
Name: Pulse stepper motor
1. The accuracy of each step is between three and five percent.
2. Excellent start and stop and reverse response.
3. No brush, high reliability.
4. Maximum torque when the motor stalls.
FAQ
1. Can I get a free sample for a testing?
A. Sure, you can send us the material you want to print, we will test it for you and take photos and videos for your reference, if you want to see it, just pay the shipping cost is ok.
2. How long warranty period you provide for your products?
A. All machine of us have 12months warranty from the day you begin use the machine.
3. Do you have all consumables for your machine?
A. Yes, all consumables of our machine is avaliable, just contact us and tell us your requirement.
4.Can I install the machine easily?
A. Yes, the machine support all kinds of operate system, and there is CD and manual matched during paking, you can see the CD install by yourself. Also you can ask us for help, we will use teamviewer assist you online on problem.
5. How to buy your machine?
A. You can place Protection Order on Alibaba directly, or let us know the detailed you need, we will make proforma invoice with our bank information for you confirm, and we will delivery the goods accordingly after get payment, and let you know the tracking number(or send you B/L) then.
6. Do you take part in the exhibition?
A. Yes, we take part in exhibition in Shanghai, Guangzhou each year, and we will send email to inform you some days in advance, and welcome to our booth in that time.
7. When can I get the price?
A. We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
