Product Details:
Payment & Shipping Terms:
|
| Usage: | YAG Laser Xenon Lamp | Cooling Mode: | Water Cooling |
|---|---|---|---|
| Condition: | New | Application: | Laser Cutting,Laser Engraving |
| Keyword: | Laser Sheet Metal Cutting,laser Cutting Machine | Function: | Cutting Nonmetal Materials,Cutting Metal Materials,Cutting And Engraving,Engraving Nonmetal Materials |
| Highlight: | 120mm Laser Xenon Lamp,YAG Laser Xenon Lamp,120mm photon xenon lamp |
||

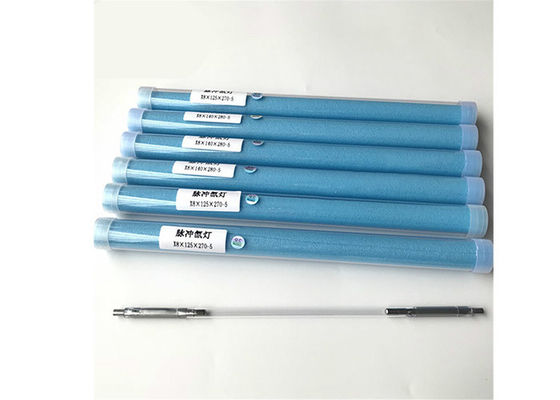

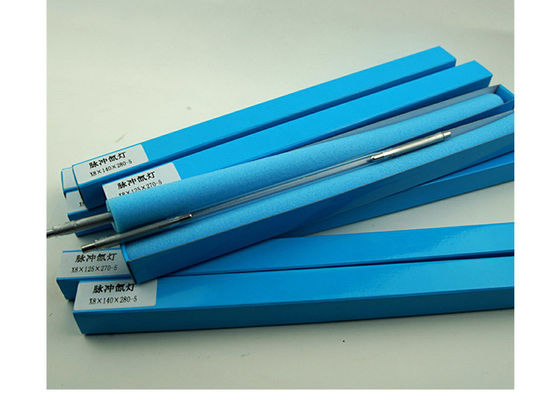

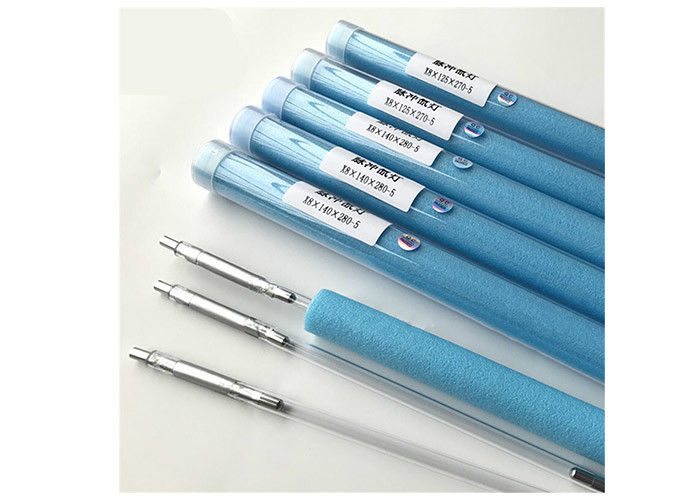

Welding Machine Parts 120mm Laser Xenon Lamp CE Certification
High quality Laser Xenon lamp Yag laser welding machine parts xenon lamps
Parameter
|
X5×70×150 |
X 7×70×150 |
X 8×90×210 |
X 8×150×300 |
X 9×150×290/6 |
|
X 5×75×140 |
X 7×70×250 |
X 8×90×220 |
X 8×170×310 |
X 9×150×298/5 |
|
X 5×75×170 |
X 7×75×188 |
X 8×90×240 |
X 8×170×315 |
X 9×155×290/5 |
|
X 6.5×37×124 |
X 7×80×166 |
X 8×100×210 |
X 8×170×365 |
X 9×170×310/6 |
|
X 6.5×50×120 |
X 7×85×186 |
X 8×100×220 |
X 8×180×330 |
X 9×170×315/5 |
|
X 6.5×70×140 |
X 7×185×198 |
X 8×100×230 |
X 9×70×150 |
X 9×200×318/5 |
|
X6.5×70×150 |
X 7×90×190 |
X 8×100×250 |
X 9×90×240 |
X 9×200×318/6 |
|
X6.5×75×180 |
X 7×100×176 |
X 8×100×270 |
X 9×100×210 |
X 9×230×348 |
|
X6.5×80×166 |
X 7×100×186 |
X 8×100×288 |
X 9×120×270 |
X 9×280×390 |
|
X6.5×100×176 |
X 7×100×210 |
X 8×110×240 |
X 9×125×256 |
X 10×45×125 |
|
X 6.5×110×260 |
X 7×100×230 |
X 8×120×240 |
X 9×130×245/6 |
X 11.5×120×203 |
|
X 7×45×110 |
X 7×100×288 |
X 8×120×260 |
X 9×130×260/5 |
X 12×155×305 |
|
X 7×50×120 |
X 7×120×250 |
X 8×120×264 |
X 9×130×264/5 |
X 12×200×340 |
|
X 7×50×125 |
X 7×120×270 |
X 8×120×270 |
X 9×130×264/6 |
Imported type |
|
X 7×50×136 |
X 8×60×260 |
X 8×125×270 |
X 9×130×270/5 |
X 9×80×210/5 |
|
X7×60×120 |
X 8×67×180 |
X 8×130×270 |
X 9×140×280/5 |
X 8×170×365 |
|
X7×65×140 |
X 8×80×202 |
X 8×140×280 |
X 9×150×280/5 |
X 9×130×264/5 |
|
X7×65×133 |
X 8×80×220 |
X 8×150×290 |
X 9×150×280/6 |
X7×65×130 |
|
X7×65×150 |
X 8×90×200 |
X 8×150×297 |
X 9×150×290/5 |
X 9×170×315/5 |
Description
Laser xenon lamp, pulse xenon lamp, xenon lamp, laser tube, laser welding xenon lamp, xenon tube, YAG laser xenon lamp, photon xenon lamp, imported xenon lamp cutting machine, YAG cutting xenon lamp, photon lamp, laser spot welding xenon lamp, laser welding lamp tube, Laser-welded xenon lamp
Specializing in the production and sales of YAG laser xenon lamp, laser xenon lamp, laser tube, photon xenon lamp, laser xenon lamp, laser imported xenon lamp, laser cutting machine xenon lamp
For example: X8*140*280/5 Unit: (mm) (X) stands for: Xenon lamp (8) means: lamp outer diameter (140) means: lamp arc length (280) means: lamp length (5) stands for : tube electrode tip diameter
Note when replacing the xenon lamp:
1. Do not stain the quartz bulb. Keep it clean. Use alcohol cotton before cleaning and then light it. 2. Due to the large current, the contact between the lamp cap and the lamp holder must be good, and the contact point must be cleaned during use. 3. Because the lamp is filled with high-pressure gas, it should be avoided during loading and unloading, especially when installing the machine. It should be placed in a well-heated cover during operation to prevent explosion and strong light and strong ultraviolet rays from burning the skin and eyes. 4. The xenon lamp must be used with a dedicated DC power supply and trigger. The ripple factor of the DC power supply must not exceed 7%. The operating current should be within the specified range when igniting. Otherwise it will affect the life of the lamp or even destroy it.
