| Type: | Power Tool Parts | Is_customized: | Yes |
|---|---|---|---|
| Application: | For YAG Laser Marking Welding Machine | Origin: | CN(Origin) |
| Usage: | Commercial Manufacture | Brand Name: | Maxwave |
| Highlight: | 49mm YAG Laser Tube,CE YAG Laser Tube,49mm laser flash lamp |
||

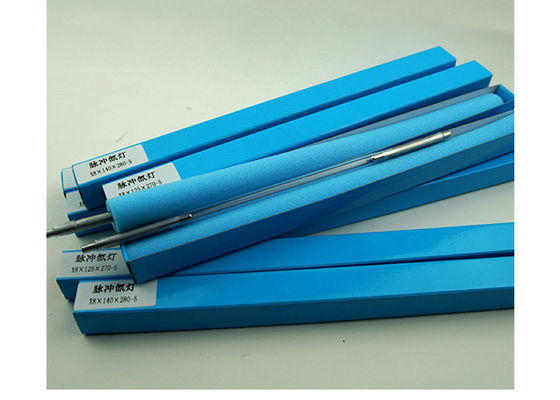

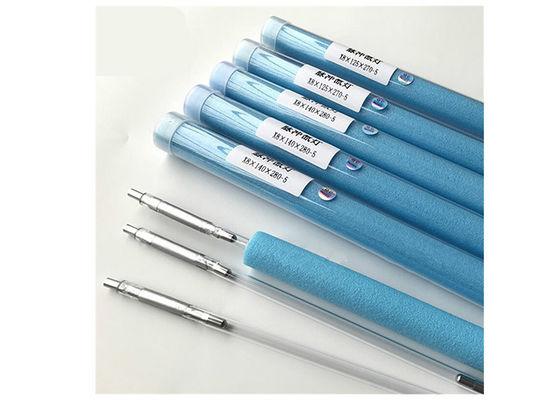

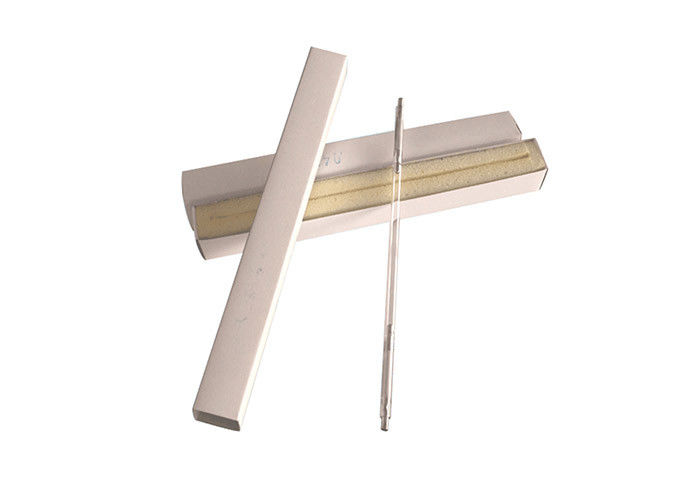

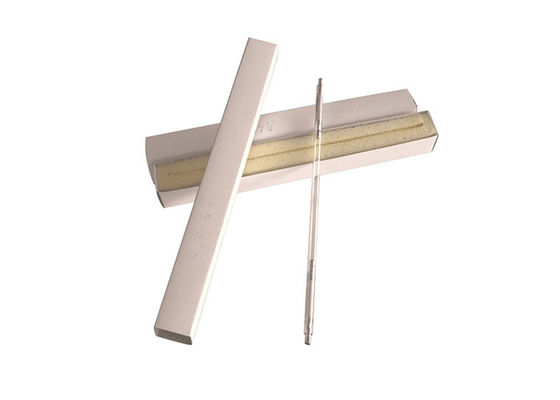

Welding Equipment Parts YAG Laser Tube 49mm Single Pass CE Approved
Welding Equipment Parts Laser Xenon Lamp YAG Laser Tube Krypton Lamp Xenon Arc Lamp Flash Laser Pulsed Lamp
Parameter
|
Main technical index of Xenon lamp |
|||||
|
Complete Length (mm) |
Body Length/Optical Length (mm) |
Arc Length/Interelectrode distance (mm) |
Electrode Length (mm) |
External Diameter (mm) |
Working way |
|
Ha |
Hb |
Hc |
Hd |
Da |
|
|
46.5 |
39.3 |
26 |
3.6 |
3.4 |
single-pass |
|
99.3 |
94.5 |
61 |
3 |
4.2 |
single-pass |
|
72.2 |
65 |
49 |
4.4 |
3.8 |
single-pass |
|
60 |
55.5 |
33 |
2.5 |
4 |
single-pass |
|
56 |
50 |
36 |
3.2 |
3.6 |
single-pass |
|
60 |
55.5 |
40 |
3 |
3.6 |
single-pass |
|
60 |
55.5 |
33 |
2.5 |
4 |
single-pass |
|
60 |
56 |
41 |
2.5 |
3.8 |
single-pass |
|
50 |
45.5 |
31 |
2.5 |
3.3 |
single-pass |
|
99.5 |
95 |
61 |
3 |
3.2 |
single-pass |
|
46.5 |
39.4 |
25 |
3.5 |
3.3 |
single-pass |
|
65 |
59 |
23.5 |
3 |
5.5 |
repetition-frequency |
|
81.5 |
74.5 |
30 |
3.2 |
5 |
repetition-frequency |
|
85 |
78 |
36.5 |
3.2 |
5 |
repetition-frequency |
|
140 |
132 |
61 |
3.5 |
7.5 |
repetition-frequency |
Details
1) Tube material of pulse xenon lamp is made of the high-quality ultraviolet quartz tube. Emission electrode is a reserve type electrode.
2) Have the characteristics of high load strength, high pump efficiency, good quality of laser beam and long life, etc.
3) Laser pulse xenon lamp series are widely used in various types of Nd: YAG lamp pump laser; we can make various needs of xenon lamp according to customers' order.
