Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera

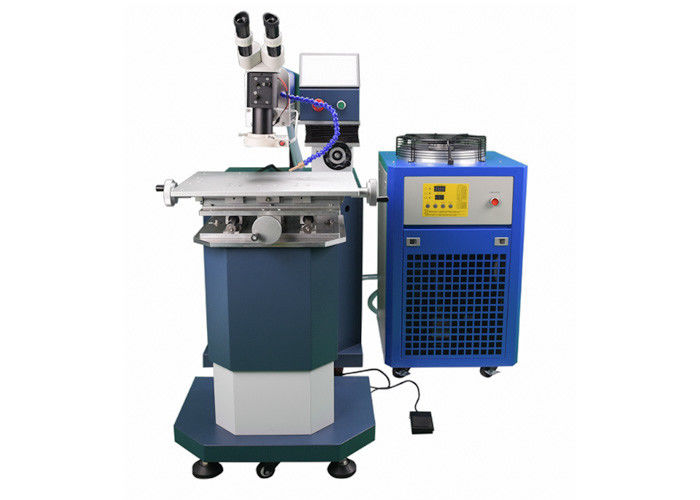

Large Image : Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera

Product Details:

Place of Origin:	China
Brand Name:	Maxwave
Certification:	SGS, CE
Model Number:	MW-MLWM-200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Plywood cases
Delivery Time:	7 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500set per year

Contact Now

Detailed Product Description

Cooling Mode:	Industrial Water Chiller	Condition:	New
Application:	Mold Repair, Jewelry Welding	Adjustable Beam Size:	0.2-2mm
Wavelength:	1064nm	Transport Package:	Standard Export Wooden Box
Highlight:	YAG Laser Welder , 120J YAG Laser Welder , 120J laser mold welding machine

Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera

YAG Series Mold Repair Machine Laser Welding Machine Argon Welder Machine

Parameter

Model	MW400
Laser Power	400W
Laser Type	YAG Lasers
Wavelength	1064nm
Max.Pulse energy	120J
Max.Welding thickness	0.1-1.0mm
Gross Power	≤12KW
Voltage	380V ± 10%/50HZ/40A
Pulse Width	0.2-20ms
Spot Adjustable Range	0.2-2mm
Frequency	0.5-20Hz
Cooling Mode	Water Cooling
Protective Gas	Single 1(Argon)
Warranty	1 Year
Working Table	3D Manual
Positioning	Microscope
Lifting distance	Fixed/300mm
Laser axial rotation	Fixed/360°
Horizontal Direction	Fixed/Y Axis Can Move/XY Motorized

Description

The machine mechanical arm could lifted up and down, 360 degree rotation, and can weld large molds with a radius of 1.5 meters and a few tons of weight. The equipment is equipped with roller skating and easy to move. It can be moved to injection or die-casting mold for direct repair.

Maxwave YAG laser welding machine equipment temperature sensor jewelry handicraft circuit board laser welder
1.The mold repair laser welding machine is used to repair set foot part welder parts claw, fill sand holes and small teeth precision components such as batteries with nickel, integrated circuit leads, watches and clocks, kind, austenitic stainless in the fields of electron gun, assembly welder. aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile. Perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

2.The laser welding machine is applied for the fast welding of various metal letters, stainless steel letters, LED luminous characters, AD Logos, customized metal signage and exterior billboards. It's widely used for Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.

Feature

★ Twelve-direction welding angle can be adjusted. Operating lever controls the electric adjustment speed of the laser welding head.It is suitable for repair welding of any angle and position.
★ United Kingdom imports ceramic condenser cavity, corrosion resistance, high temperature resistance and Chamber life (8-10),Xenon lamp life of more than 8 million times.
★ Uses the world's most advanced automated blackout systems, eliminating time on eye irritation.
★ Use 10X microscope, cross hair indicates, and uses high-speed liquid crystal light valve light automatically.Pace with laser output of the shielding gas, ensure that solder joint appearance, oxidation of solder will not change color.
★ Use 7-inch LED screen, able to switch in Chinese and English freely, pace with the international market.

Details

1. Adopted UK imported ceramic condenser cavity:

Corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.
Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 0
2. Motic HD microscope:
10 x microscope amplification,cross cursor indicator,and adopting advanced automatic shading system.synchronization with the laser output of shielding gas,to make sure the solder joints and beautiful and smooth. Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 1
3. CCD Camera:
Adopts China famous brand CCD camera, LCD screen and red pointer.
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.The welding effect is more clear and intuitive.

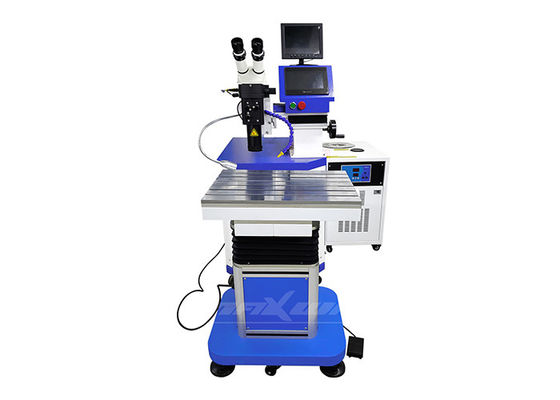

4. X / Y / Z three-axis mobile work platform:
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 3
5. LCD Colorful Screen:
The operation interface of the welding machine control system is simple and practical.Pulse width, frequency and speed can be adjusted on the screen and no need PC. Can save 50 sets of frequently used welding parameters. easy to use.
Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 4
6. Water Chiller:
BY-LW36 Industrial chiller.Cooling capacity of 3600W, high power cooling effect is more stable.With compressor could cool down laser quickly to ensure that the laser has stable power and efficient and fast operation.
Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, System alerts and stops working,can protect the working life of laser effectively.
Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 5
7. LED Light:
Standard comes with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue microscope auxiliary light. The auxiliary lighting uses energy-saving high-light bulbs with clear imaging and good heat dissipation effect, and will not burn the skin for a long time.
Three Axis Argon Gas YAG Laser Welder 120J 1064nm With CCD Camera 6
8. Foot Pedal:
Protective foot switch can prevent the switch from being touched by mistake.
