Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens

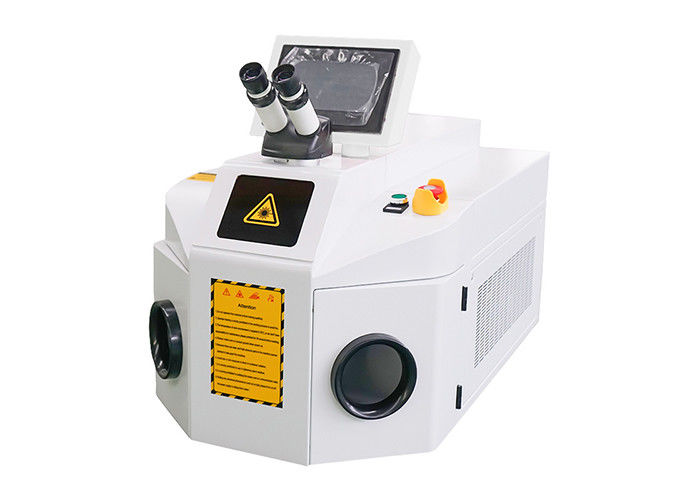

Large Image : Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens

Product Details:

Place of Origin:	China
Brand Name:	Maxwave
Certification:	CE
Model Number:	MW-DW200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	3399USD/set
Packaging Details:	Plywood case
Delivery Time:	7 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500set per year

Contact Now

Detailed Product Description

Pulse Width:	0.1-20ms	Condition:	100% New
Wavelength:	1064nm	Warranty:	1 Year
Single Pulse Energy:	90J	Dimensions:	840x450x500mm
Highlight:	1064nm Desktop Laser Welding Machine , 1064nm Laser Welding Machine , 1064nm laser spot welding machine

Stainless Steel Desktop Laser Welding Machine 1064nm Protective Lens

Stainless Steel Gold Jewelry Desktop Portable Small Mini Yag 200W Ccd Laser Welding Machine

Product Description

Desktop jewelry laser spot welding machine is a laser welding equipment dedicated to the metal jewelry industry. It is mainly used for gold jewelry laser welding, silver jewelry laser welding, titanium alloy jewelry laser welding, stainless steel jewelry laser welding, and manual laser welding of small metal parts. Welding etc. It has the characteristics of high precision, low energy consumption, firm welding and small size.

Product Features

1. Imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life. 2. The laser energy, pulse width, and frequency are adjustable, suitable for precision welding of various metal micro-small parts and jewelry; 3. The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed for easy cleaning and gold welding slag recovery. 4. LED ring-shaped shadowless lamp, observing the workpiece without shadow, with the high-definition parallel light path microscope, the laser welding position can be observed more clearly. 5. High-power beam expansion system to obtain a finer light spot to meet the needs of fine laser spot welding. 6. The protective gas output by the laser synchronously ensures that the solder joints are beautiful without oxidation and discoloration. 7. The whole machine conforms to ergonomic design, which is more suitable for the jewelry industry, with stable performance and suitable for long-term continuous work.

Technical Parameters

Model	CM-WJ100
Laser Power	100W
Laser Wavelength	ND:YAG /1064nm
Welding Mode	Spot welding
Modulation Frequency	1-20Hz
Focal Spot Diameter	0.1-1.5mm adjustable
Pulse Width	1ms-20ms adjustable
Peak Energy	60J
Welding Bath Depth	0.05-2mm(Depending on the material)
Observation Method	Optional microscope or CCD camera
Cooling Mode	Built-in Chiller
Consumables	Xenon lamp, Protective lens, Water, Protective gas (or compressed air)
Power Consumption	3KW
Power Requirement	220V/ 50-60Hz
Dimension & Weight	850500600mm & 80KG

Product Details

.Power Supply

Reasonable circuit layout, stable and safe performance.

.Laser Cavity

Imported ceramic concentrating cavity, strong energy, high temperature resistance, corrosion resistance, convenient replacement of xenon lamp, good airtightness.

.Operation Interface

Using touch screen operation interface, simple, sensitive.

.CCD Microscope

High-definition flat light road CCD microscope, equipped with LED shadowless ring lamp, welding position clearly visible.

.Welding Area

The welding area has a large space, which is convenient for the placement of welding tools and fixtures; and a welding debris recovery box is installed for easy cleaning and recovery of precious metal welding slag.

.Pedal Switch

Equipped with pedal switch, which is convenient for operation and improves work efficiency.

Product Applications

Widely used in precision casting welding, such as: jewelry, dentures, clocks and watches, medical, instrumentation, electronics, mechanical mold processing, automobiles and other industries. It is especially suitable for the welding of gold and silver jewelry's repair holes, spot welding sand holes, repair seam patterns, inlaid parts and claw feet.

Sample Photos
