| Power: | 60W/200W | Usage: | Laser Gold Soldering Machine |
|---|---|---|---|
| Single Pulse Energy: | 40J/50J | Wavelength: | 1.064um |
| Pulse Frequency: | 0.1-100Hz | Processing Material: | Gold/silver/titanium/platinum Jewelries |
| Highlight: | 1.064um Gold Laser Soldering Machine,200W Gold Laser Soldering Machine,1.064um laser gold soldering machine |
||

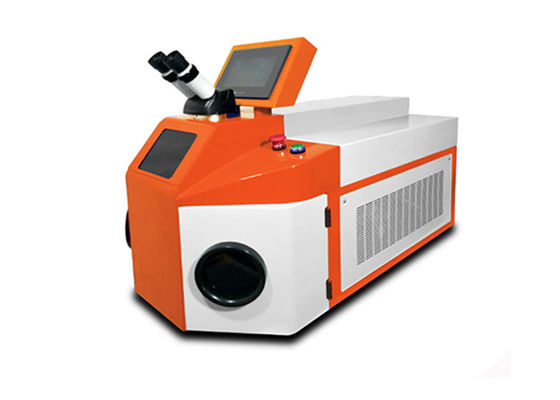

Small Size 1.064um Gold Laser Soldering Machine For Jewellery

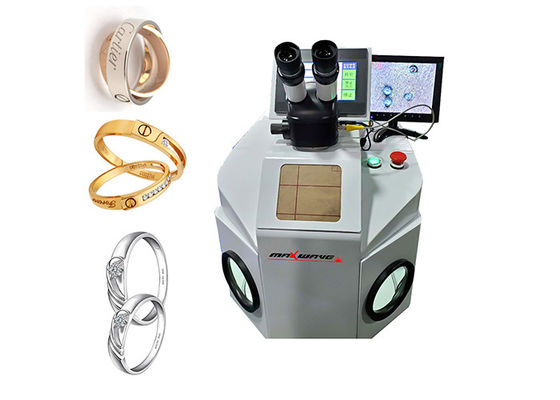

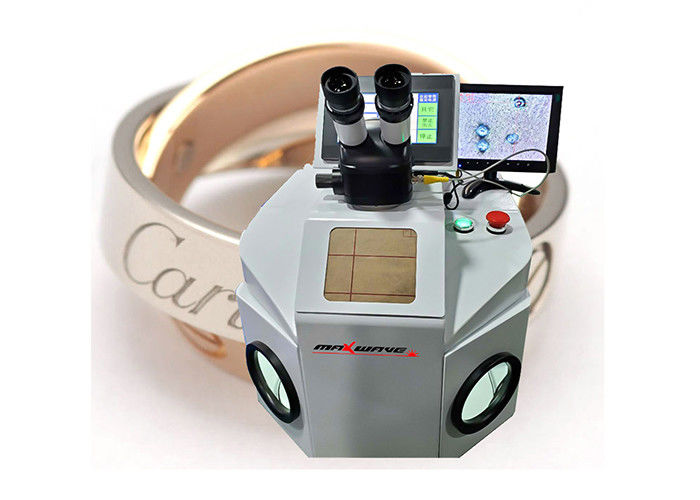

Jewelry Laser Welding Machine Dental Used Jewelry Laser Welder Smith Machines
Product Description:
This machine is specially designed for jewelry laser welding, which is mainly used in jewelry patching holes and blister repairing.
Laser spot welding is one of the most important applications for material processing technology. The procedure of spot welding
belongs to heat conduction type, that’s to say the laser radiation heat the surface of the workpiece, the heat on the surface spread
toward inside by heat conduction. By controlling the parameters as width, energy, peak power and repeat frequency, etc. of the laser
pulse, workpiece will be melted and formed special molten pool. Due to the particular advantage, it has been successfully used in
processing gold and silver jewelry as well as welding tiny and small parts.
1. With good laser beam quality, even spot size, small welding heat zone, less distortion, fast welding speed.
2. Located by microscope and spot size can be adjusted. No filling parts and easy operation.
3. Humanized interface, LCD and compact design. And support to multi-language, such as English, Spanish, Arabic and etc.
4. Laser filter protection device, it can prevent operator from laser.
It is widely used in aerospace, sports goods, jewelry, medical, instrumentation, electronics, machinery and molding and auto industry.
Especially in repairing jewelry, watch hairspring, dental, kinescope and etc.
| Model | JW200W/100J |
| Wavelength | 1064nm |
| Pulse width | 0.5ms-20ms |
| Single pulse energy | 40 J/50 J |
| Max. output power | 60W/100W |
| Spot size | 0.2mm~1mm |
| Welding depth | 0.8mm/≤1mm |
| Frequency | 1Hz-100Hz |
| Input power | 220V,Single phase/380V,tri-phase |
| Power consumption | ≤4KW/≤5KW |
