Product Details:
Payment & Shipping Terms:
|
| Applicable Industrie: | Garment Shops, Home Use, Retail, Printing Shops, Advertising | Ink Type: | UV Ink |
|---|---|---|---|
| Ink Supply System: | CISS | Printed Head: | EPSON DX5/1390 |
| Software: | AcroRip 9.03 (included) | Working Table Size: | 300*420mm |
| Highlight: | A3 UV Flatbed Printing Machine,CMYK UV Flatbed Printing Machine,a3 uv flatbed printer |
||

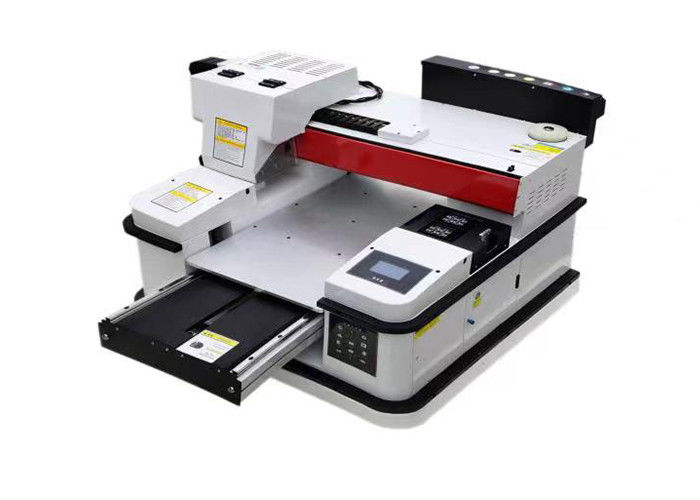

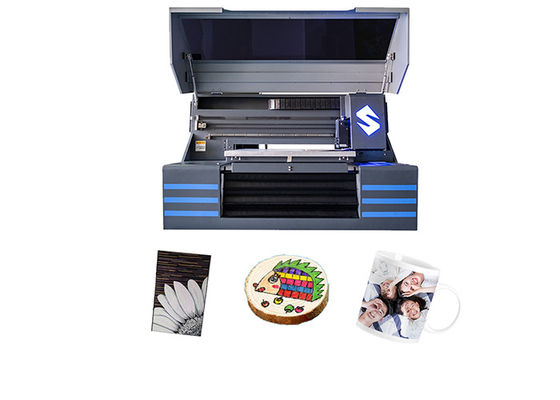

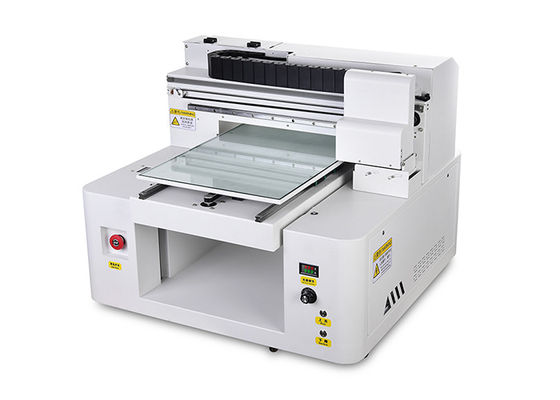

SGS Water Cooling UV Flatbed Printing Machine A3 CMYK WW Colour
Main Advantages:
1. With Epson original print head
2. Pulse motor and IR sensor and ARM controlling chip to upgrade printing precision and speed .
3. Both button and touch screen motor to make easy operation .
4. Rotary holder with motor drive for high printing precision .
5. Buit-in ink bottle to protect ink .
Printer Parameters:
|
Type
|
A3 UV printer,UV Flatbed Printing Machine
|
|
|
|
Print Head
|
Epson
|
||
|
Print Size
|
A3(297*420mm)
|
||
|
Print Speed
|
A3(1440dpi/10min)
|
Software
|
AcroRIP
|
|
Print Height
|
0~140mm,Infrared ray height measurement
|
System
|
WindowXP,7,10,
|
|
Ink Consumption
|
1m2/10ml
|
Colour Configuration
|
CMYK+WW
|
|
Ink Supply Mode
|
CISS
|
Cameo Print
|
Support
|
|
UV Light Lifespan
|
3 years
|
Package Dimensions
|
720*700*570mm
|
|
UV Light Cooling
|
Water cooling+wind cooling
|
Dimensions
|
67*67*50cm
|
|
UV Light Power
|
50W
|
Net weight/gross weight
|
65KG/75KG
|
|
Platform Adjustment
|
Touchscreen+infrared ray height measurement
|
||
|
Platform Drive
|
Stepping motor drive
|
||
|
Ink filtration
|
Ink bottle and ink bag dual filtration
|
||
|
Voltage/Plug
|
AC100~230V/choosing & matching according to the region
|
||
|
Print Head Protection
|
Intelligent Infrared Anti-collision System and Anti-clogging of Maintenance Fluid for Ink Absorbing Pad
|
||
|
Print Media
|
Mobile phone shell/leather/lithography/crystal/acrylic/card/CD/U disk/engraving and so on
|
||
|
Note
|
Flat-panel printer adopts stable platform technology and advanced stepper motor drive mode. It combines infrared meanwhile, laser positioning, water-cooling and air-cooling to meet long-term continuous work requirement. It has a wide print range and can print products within 120 mm height.
|
||
