Product Details:
Payment & Shipping Terms:
|
| After Warranty Service: | Online Support, Spare Parts | Laser Source: | Raycus Laser Source |
|---|---|---|---|
| Marking Speed: | 0-7000mm/s | Marketing Type: | New Product 2021 |
| Marking Area: | 300mm*300mm,200x200mm | Control Software: | EZcad |
| Marking Depth: | 0 ~0.5mm | Marking Hea: | SINO |
| High Light: | 200x200MM Portable Laser Marking Machine,200x201064nm Portable Laser Marking Machine,200x200MM jpt laser engraver |
||

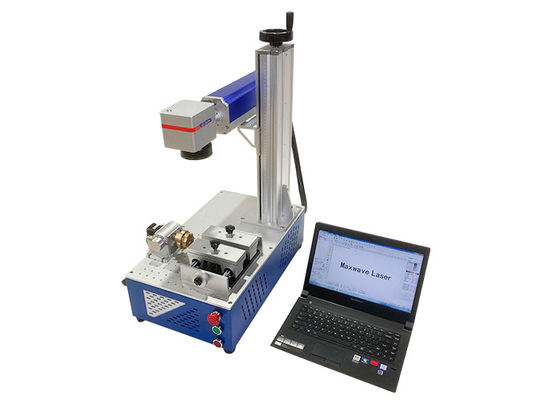

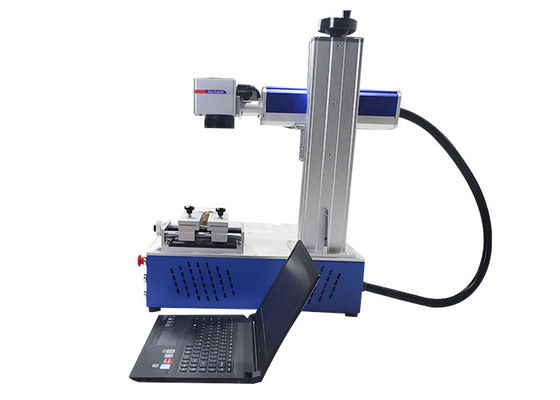

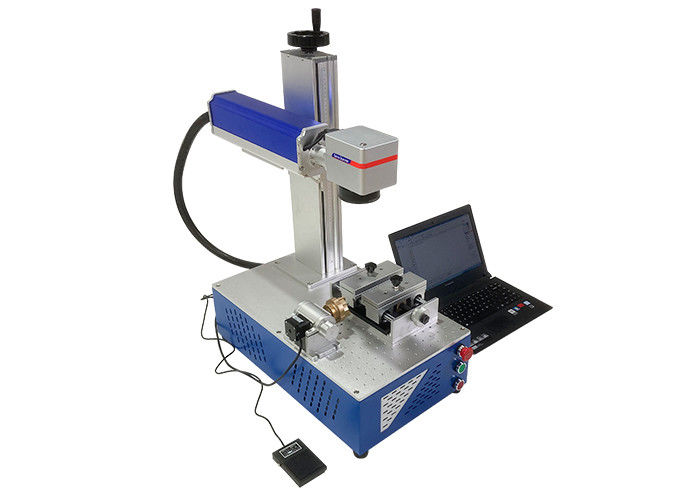

SGS 200x200MM Portable Laser Marking Machine 1064nm Wavelength
Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source
Parameter Data:
| Laser power | 20W 30W 50W 100W |
| Laser wavelength | 1064nm |
| Beam quality | M2<2 |
| Control software | Ezcad (provided) |
| Marking depth | ≤0.3mm |
| Cutting depth | ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
| Marking speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.5mm |
| Marking Size | 110 * 110mm ( 75mm 200mm 300mm optional ) |
| Electric power | <500W |
| Working voltage | 110/220V ± 10%, 50/60HZ |
| Cooling way | Air cooling |
| Ambient operating temperature | 15 ° C - 35 ° C |
| Graphic file format | PLT, DXF, AI, BMP, JPG |
| Machine weight | 39 |
| Machine size | 56L * 55W * 72H (cm) |
| Packing | Plywood box |
System features and advantages:
It can import vector graphics such as PLT, DXF and bitmap such as BMP, and use powerful graphics generation and processing functions such as AutoCAD and CorelDRAW.
Can Symbol bar code, all kinds of text (including date and time, disordered text skip number, number skip number, etc.), graphics, images, etc.
Support multi document marking, rotary marking, vernier caliper marking, cutting marking (large graphics marking) and flight marking
