Product Details:
Payment & Shipping Terms:
|
| Usage: | UV Painting Wall Printing Machine | Ink Type: | Special Eco Friendly Ink |
|---|---|---|---|
| Operating Platform: | Windows XP/7/8/9/10 | Core Components:: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox |
| Core Components: | Motor, Printer Head | Place Of Origin: | Hubei, China |
| High Light: | 8M2/H Direct Wall Inkjet Printer,ODM Direct Wall Inkjet Printer,8M2/H direct to wall inkjet printer |
||

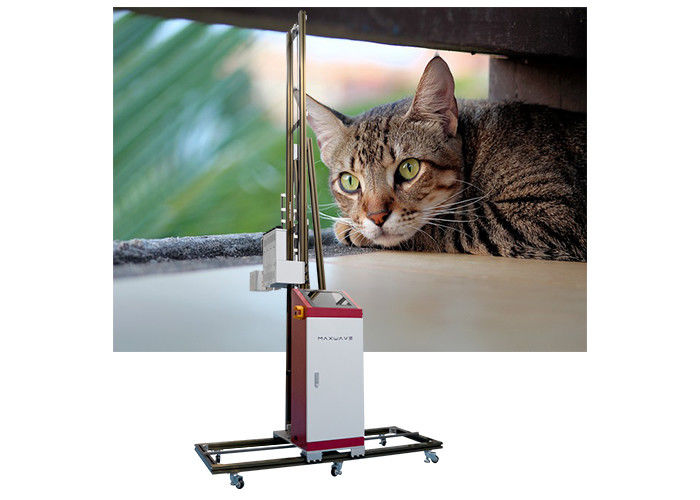

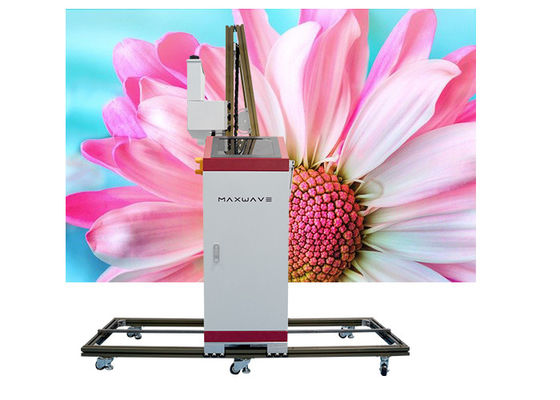

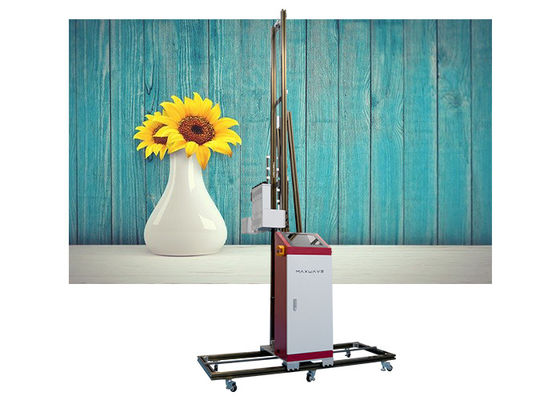

Self Guide Rail Direct Wall Inkjet Printer 8M2/H DC Brushless Servo
Vertical Inkjet Wall Printer 3D UV painting wall Printing machine/ UV Light Glass Wall Decor Paintings Flatbed Printer
Product Advantages:
1. The frame of printer is made of profiles made of special formula aluminum magnesium alloys. It has high strength, high structural accuracy, and high integration of light and thin machine boxes. The weight is light and durable, and the overall handling is convenient.
2. Simple multi-color integrated ink cartridge ink supply system, stable, convenient, support fast pipeline separation, separation of hydropower, ready to use and release;
3. The actual size of the jet picture: 2200mm high, infinite width. Special track fasteners, quick demolition, quick installation, simple operation, convenient to use; no need to move the machine in the middle of the construction and no need to do splicing. Make big size painting. The picture is more perfect;
4. The special ink for wall painting uses imported color pulp without heating, and it works normally at minus 10 °C to zero at 60 °C. It does not freeze and continues to ink. Bright colors, strong three-dimensional sense; Non-fading, non-peeling, scrub resistant, green environmental protection certification, national standard test qualified.
Key Features:
Product Data:
| wall 3D inkjet printing painting machine | |||||||
| Equipment mode | Self-guided fastener, pulley and guide rail fastener | ||||||
| Main chip | USA altera 4 generation | ||||||
| Memory Chip | South Korea Samsung 3.16 G memory | ||||||
| Printer head |
Epson 7th / Epson 5th generation piezoelectric printer head |
||||||
| Ink | Composite pigment wall painting ink | ||||||
| Motor parameters | DC Brushless Servo, Vector Positioning, Stripless Grating | ||||||
| data transmission | Integrated head, telecommunication grade optical fiber data transmission system | ||||||
| Surface tracking | hyperboloid BANNER sensor, upper and lower two -way induction | ||||||
| Material supply system | Negative pressure automatic feeding, 340 ml cartridge | ||||||
| Applicable Wall | Internal and external wall skim coating wall putty wall, latex paint wall, white wall , imitation porcelain wall, Tile, glass, rice paper, canvas, wall clothing, colored glaze, shell powder, color paint and other walls ... | ||||||
| Painting speed | Production mode:8M2/h |
HD mode: 6M2/h |
Ultra-clear mode: 4M2/h |
||||
| resolution ratio | 360*720dpi | 720*720dpi | 720*1440dpi | 1440*2880dpi | |||
| Picture Type | Support JPG, BMP, TIFF, PDF, AI, PSD, CDR, etc.. | ||||||
| Operation Environment | Wind below 5, temperature -10℃-35℃, no snow. | ||||||
| Actual painting size | Height max 2500mm, Width can be extended | ||||||
| Work noise | When standby, small surplus 20 dB when drawing small surplus 55 dB | ||||||
| Control distance | To automatically adjust the distance of a nozzle to the front(a single sensor). | ||||||
