Product Details:
Payment & Shipping Terms:
|
| Marking Material: | Metal Non-metal | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Source: | Raycus /max |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine | Marking Area: | 200mm*200mm |
| Control Software: | EZcad | CNC Or Not: | Yes |
| High Light: | 4.3×4.3in CNC Laser Machines,30w CNC Laser Machines,30w 3d laser engraving machine |
||

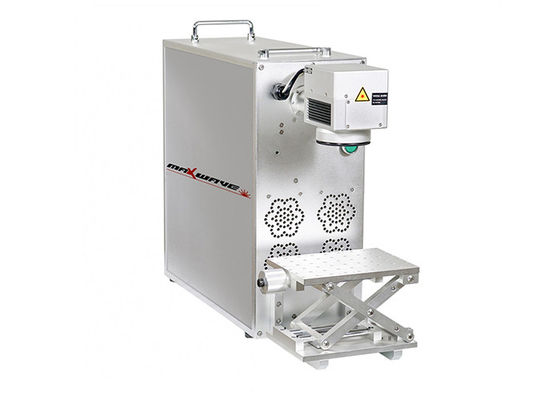

Portable Raycus 30w CNC Laser Machines 4.3×4.3in With Galvo Head
Super fast Leather Marker 30w CO2 Laser Engraving Machine with Galvo Head 60w Co2 Laser Marking Machine
Machine Features:
1. Easy to operate, simple, fast, efficient, according to their wishes to design their desired logo, clear and convenient, high satisfaction.
2. High photoelectric conversion rate.
3. The portable fiber laser marker adopts air-cooled cooling, which is better than water cooling.
4. Compact size, the CNC laser marking machine is easy to handle and install.
5. The output beam of the portable fiber laser marker has high reliability.
6. The marking depth of the portable fiber laser marking machine is up to 1mm.
7. 10 years of operating life, this energy-saving model CNC laser marking machine are more affordable.
8. The marking speed of the CNC laser marking machine is 3 to 12 times that of the traditional first-generation lamp-pumping marking machine. and the second-generation semiconductor portable fiber laser marker.
9. No consumables, low power consumption, maintenance-free.
10. Permanent clear mark, the portable laser marking machine has irreplaceable advantages.
Machine Technology Para:
| Model Number | AUC DAVI 30 CO2 making machine,3d laser engraving machine |
| Marking Area |
110 mm × 110 mm (4.3in× 4.3 in) Optional marking area: 150 mm ×150 mm (5.9in × 5.9in) |
| Laser Type | CO2 Laser |
| Repetition Rate (Frequency) | 1-20kHZ |
| Output power adjustment range | 10%-100% |
| Marking Speed | ≤7m/s(275.6in/s) |
| Engraving Depth | ≤3 mm(0.11in) Depends on the material |
| Minimum Line Width | 0.1mm(0.0004in) Depends on the material |
| Minimum Character | 0.2mm(0.008in) Depends on the material |
| Output Power | 30W |
| Electrical Requirements | 110V or 220V/50Hz-60Hz(According to local electricity supply) |
| Marking Interface | USB connection. Compatible with Windows XP/Vista/7/8/10 |
| Communication Mode For Automation | TCP/IP , IO , RS232. |
| Marking Content | barcodes, serial numbers, text, vector,and logos. |
| Red Dot Pointer | Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire |
| Size | 560×660×700mm (22×26×27.6in) |
System features and advantages:
It can import vector graphics such as PLT, DXF and bitmap such as BMP, and use powerful graphics generation and processing functions such as AutoCAD and CorelDRAW.
Can Symbol bar code, all kinds of text (including date and time, disordered text skip number, number skip number, etc.), graphics, images, etc.
Support multi document marking, rotary marking, vernier caliper marking, cutting marking (large graphics marking) and flight marking
