Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC220V±10% 50Hz/60Hz | Cooling System: | Built-in Water Cooling |
|---|---|---|---|
| Energy Per Pulse: | 40J | Laser Frequency: | 1.0~10.0Hz Continuously Adjustable |
| Focal Spot Diameter:: | 0.6-3mm | Advantage: | High Precision |
| High Light: | YAG Jewellery Laser Soldering Machine,40J Jewellery Laser Soldering Machine,YAG Laser Soldering Machine |
||

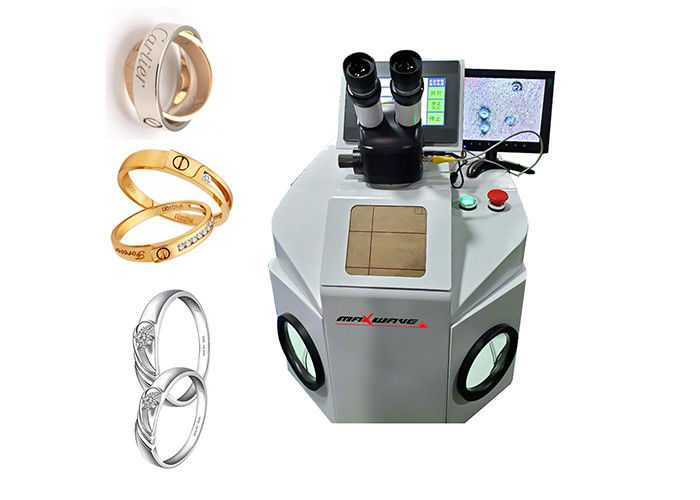

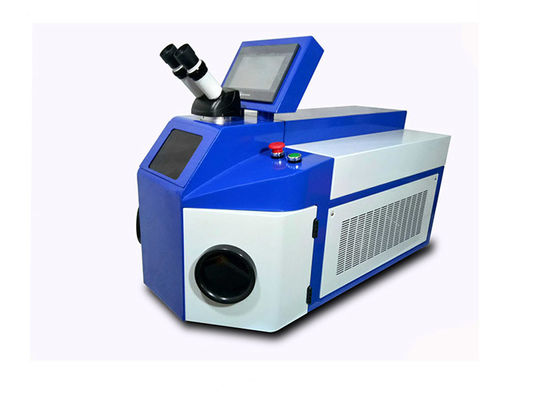

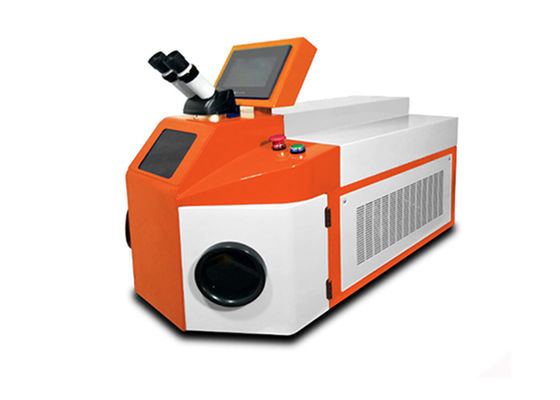

Portable 40J YAG Jewellery Laser Soldering Machine CCD Microscope
Jewelry Laser Welding Machine/Laser Spot Welding Machine is an important and basic aspect of laser welding technology. When laser radiation heats the surface of the work-piece, the surface heat diffuses to the interior through thermal conduction and melts the workpiece by controlling the width, energy, peak power, and repeating frequency of laser pulse to form specific molten pool.
Applications Applicable industry:
Used for precision welding of hardware, kitchen and bathroom industry hardware (faucet and round pipe welding, kitchen sheet metal parts, washing machine inner tube welding, etc.) and electronic industry (mobile equipment) precision hardware welding. Phone, tablet, car, etc.)
Applicable materials:
It can meet the welding of various metals, alloys, steel, Kovar alloy and other same materials, as well as the welding of copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper andother dissimilar metals.
Technology Data:
|
Output Power |
100 W I 200 W I 300 W – based on requirement |
|
Single-pulse energy |
0-100 J |
|
Machine Design Type |
Desktop Vertical |
|
Laser Source |
ND: YAG |
|
Laser Wavelength |
1064 nm |
|
Pump lamp |
Pulsed Xenon Lamp |
|
Pulse Width |
0.1.15 ms adjustable |
|
Pulse Repeated Frequency |
1 - 20 Hz adjustable |
|
Welding spot diameter |
0.2-1.5 mm adjustable |
|
Observing System |
Microscope CCD – based on requirement |
|
Cooling System |
Water chiller |
|
Power Supply |
Single Phase AC 220V ± 10%, 50Hz I 60HZ, 4 KW |
|
Running Environment |
Temperature 5°C-28°C Humidity 5%-70% |
