Product Details:
Payment & Shipping Terms:
|
| Ink Type: | UV Ink, Eco Solvent Ink, DTG Ink Printing | Body: | Thicken Aluminium Profile |
|---|---|---|---|
| Automatic Grade: | Semi-Automatic | Usage: | Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, A1 UV Printer Digital Printing Machine Wood |
| Color: | CMYK+LC+LM+W+V | Cooling System: | Water Circulation Cooling System |
| High Light: | 400nm UV Bottle Printer,a3 a4 UV Bottle Printer,400nm uv bottle printing machine |
||

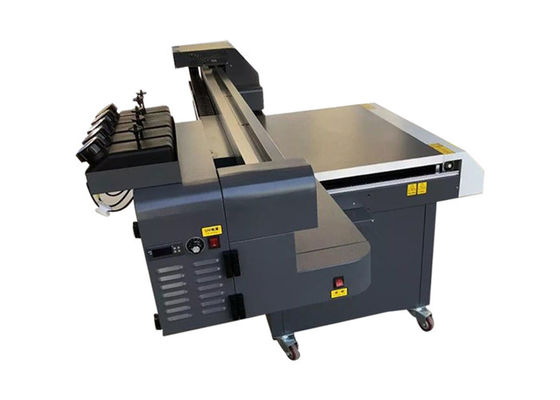

Multifunctional 400nm UV Bottle Printer A3 Chiller Cooling System
UV Printer A3 A4 Digital Printing Machine Wood Glass Ceramic Plastic Metal Plastic Multifunctional Printing
1. High quality water chiller cooling system to keep the UV LED lamp working longer and stable.
2. High precision CNC milling and laser engraving print head mounting plate.
3. Fast printing speed by print on A2 size 600*400mm with full color of uv flatbed printer only need 120 seconds.
High-precision Japanese THK linear guide.
Printer Parameters:
| Model | A1 UV printer High Quality A1 Multicolor Cheap UV Printer 6090 UV |
|
| LED-UV Function | UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | RIPRINT | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Automatically Ink damper refill system | |
| Max. printing size | A2+: 600mm*900mm | |
| Print head | 3*XP600 piezo head with 1440 nozzles | |
| Print color | CMYK+LC+LM+W+Varnish | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A2(1440dpi)/ 120s | |
| Max. media thickness | 180mm | |
| Max. media weight | 15KG | |
| Max. printing resolution | 2880DPI*1440DPI*720DPI*360DPI | |
| Ink volume | 450ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
1. High quality water chiller cooling system to keep the UV LED lamp working longer and stable.
2. mHigh precision CNC milling and laser engraving print head mounting plate.
3. Fast printing speed by print on A2 size 600*400mm with full color of uv flatbed printer only need 120 seconds.
High-precision Japanese THK linear guide.
4.Three heads cap stations to keep the printhead wet after printing. This is the only ink stack lifting system in the industry that uses four-axis screw motion, CNC carving, and all-aluminum design and development.
5. Own patent design printing mainboard to support one pass printing, FOG wave halftone rip data and variable data printing.
6. Easy loading ink tank system and can help you save space.
7. Double UV LED Lamps to make the ink dry faster and make the printing area bigger.
8.Three XP600/ DX7/DX5 heads white and color ink printing at the same time in one pass.
9. Three XP600 heads high quality colorful picture printing with ICC printing profile.
10. Max. 18cm object height available to be adjusted to meet more requirements from clients.
11. Unique 3D texture output option available print by our Galaxy-Jet X UV Printer.
FAQ:
1. What materials can UV printer print on?
It can print almost all kind of materials, such as Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU .etc
2. What products can print on using UV Printer?
You can print on Phone Case, CD, Golf Ball, ID Card, Pen, Oil Painting, etc.
3. What different between A4 and A3 UV Printer?
A4 UV printer only can print flat surface, A3 UV printer can print cylinder. A3 UV printer comes with a cylinder printing tray.
4. What different between UV printer and DTG printer?
DTG Printer is without led lamp, UV Printer comes with UV lamp, so DTG Printer uses Textile Ink for T-Shirt and Garment printing, UV Printer uses UV ink for Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU printing. UV ink needs to use a UV lamp to curing.
5. Can the uv printer print emboss 3D effect?
Yes, our UV printer can print 3D effect. Please contact us for more information.
6. What materials need to use pre-coating?
Some materials need to spray pre-coating, such as metal, glass, acrylic, etc.
