| Function: | Jewelry Welding And Repair, Welder For Gold, Silver, Dental Smith | Laser Power: | 200 Watt |
|---|---|---|---|
| Warranty: | 2 Years | Language: | Multi-language |
| Cooling System: | Water Cooling | HS Code: | 8515809090 |
| Highlight: | 15ms Laser Gold Soldering Machine,120J Laser Gold Soldering Machine,15ms micro laser soldering system |
||

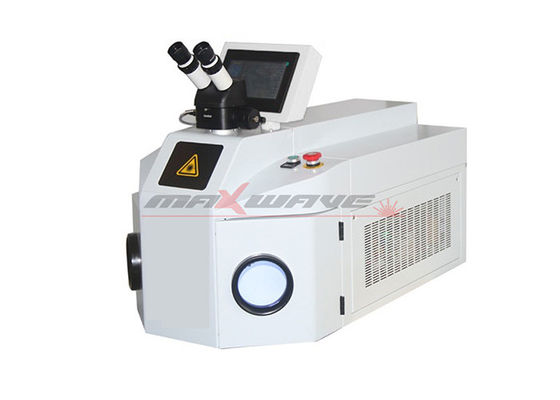

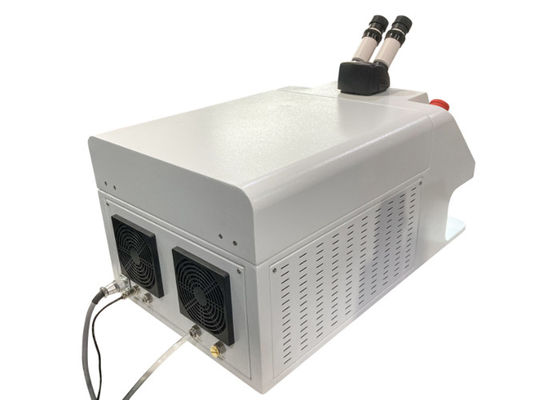

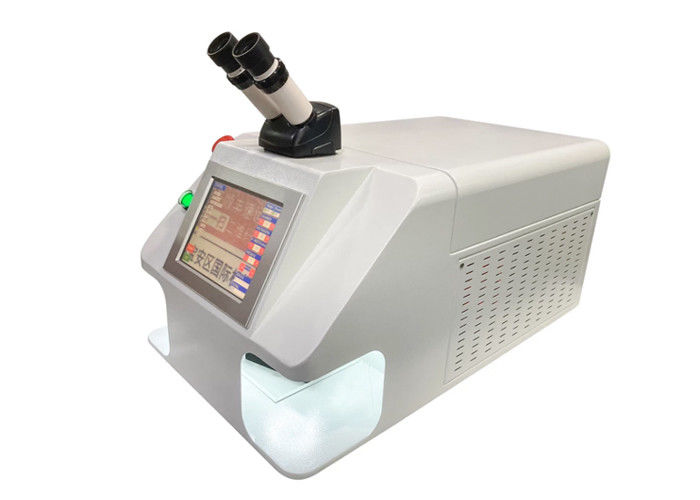

Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120J
CNC Welder Weld Equipment Soldering Machinery Handheld YAG Laser Welding Machine
Parameters
| Laser System | MW-DW200 |
| Laser Type | 1064 YAG Laser |
| Nominal Laser Power | 200w |
| Beam diameter | ±3mm |
| Pulse width | 0.2-15ms |
| Max. Laser Pulse Energy | 120J |
| Frequency | 1-20hz |
| Aiming and Positioning | Microscope +CCD (combined) |
| Voltage | 110-240V |
| Language | English |
| Machine dimension | 70*42*34cm |
| Machine Net weight | 50kg |
| Package size | 87*50*53cm |
| Gross weight | 65kg |
Description
Desktop jewelry laser spot welding machine is a laser welding equipment dedicated to the metal jewelry industry. It is mainly used for gold jewelry laser welding, silver jewelry laser welding, titanium alloy jewelry laser welding, stainless steel jewelry laser welding, and manual laser welding of small metal parts. Welding etc. It has the characteristics of high precision, low energy consumption, firm welding and small size.
Features
1. Red point fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to weld with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing (laser welding) technology brings higher quality of end
10.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option
Details
Samples
