Product Details:
Payment & Shipping Terms:
|
| Usage: | Metal Welding | Product: | YAG Mould Laser Welding Machine |
|---|---|---|---|
| Core Compone: | YAG | Viewing System: | CCD/Microscope |
| Cooling System: | Water Cooling | Application: | Molds Welding |
| Highlight: | 12KW Metal Laser Welding Machine,12KW Laser Welding Machine,12KW Mold Welder |
||

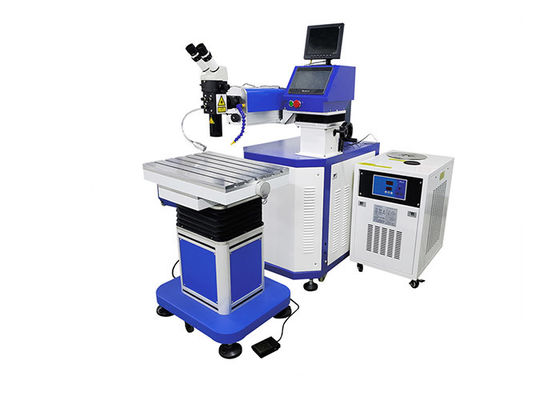

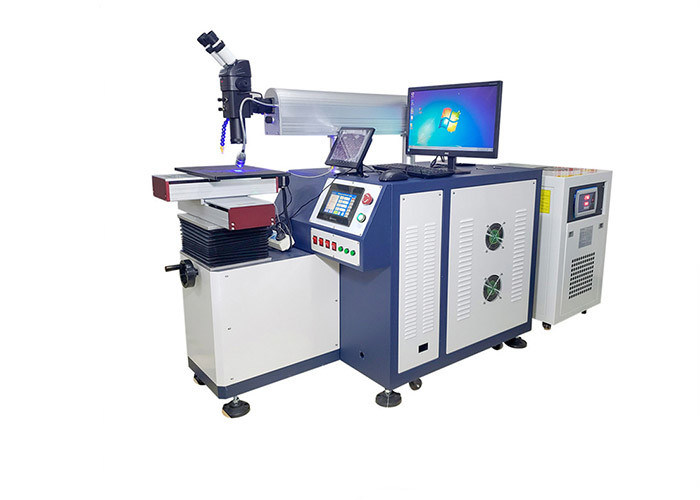

Microscope 12KW Metal Laser Welding Machine 400W YAG Mold Welder
Parameter
| Product Name | YAG Mould Laser Welding Machine |
| Laser Power | 200W/400W (optional) |
| Laser Wavelength | 1064nm |
| Pulse Width | 0.1-20ms |
| Pulse Frequency | ≤100Hz |
| Spot Diameter | 0.1-3mm |
| Repeat Accuracy | ±0.01mm |
| Observation System | CCD/Microscope |
| Working Table Load Capacity | 150KG |
| Power Consumption | 9KW/12KW |
| Machine Voltage | AC220V/380V 50-60Hz 3-Phase |
| Cooling System | Water Cooling |
| Cabinet Size | 700*1450*1680mm |
| Focus lens Focal Length | F=120mm |
| Working Table Traveling | X=100mm Y=150mm |
Features
Specifically designed for mould industry, introduct German technology, adopt unique stucture design, suitable for
all kind of large, medium and small mould repair.
1. Adoptc UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than
8 million times life of Xenon lamp;
2. Using the World’s most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3. Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving
front and back, especially suitable for all kinds of large, medium and small mould repair;
4. Parameter adjustment adopts intelligent remote control, simple and quick operation;
5. Three-dimensional moving workbench can be electric hoist;
6. Light spot size electric regulation
Technical Parameters:
Description
Laser deposition welding system (Laser Mould Welding Machine) , designed specifically for Mould industry, is used
in precision mould repair, such as digital products , mobile phones, toys, automobiles, motorcycles and other mould
marking industries. Through the mold repair, the original mould can be made full use of and the production cost can
be greatly saved and the working efficiency is improved. This technique can be applied to modify the mould design
or size, shorten product development cycle.
