Product Details:
Payment & Shipping Terms:
|
| Print Head: | Epson Double Head | Printer Machine: | Wall Printer Machine Cmykw |
|---|---|---|---|
| Plate Type: | Flatbed Printer | Core Components: | Motor, Gear, Bearing, Engine |
| Voltage: | Optional In Different Countries | Lamp: | UV Lamp |
| Application: | Wood,Ceramic,Glass,Acrylic | Working Area: | Indoor Outdoor |
| Highlight: | 8㎡/H 3D Wall Painting Printer,380W 3D Wall Painting Printer,8㎡/H cnc wall painting machine |
||

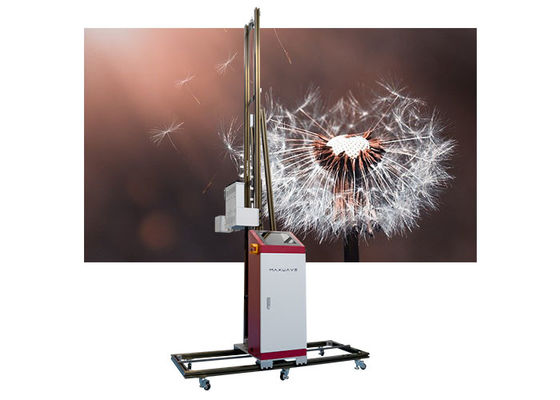

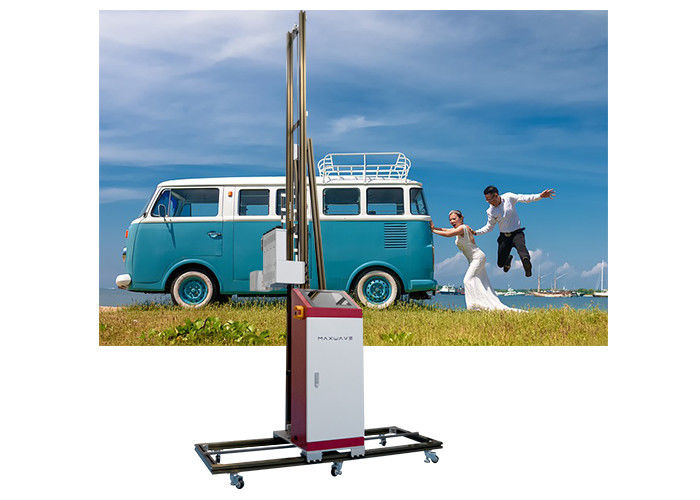

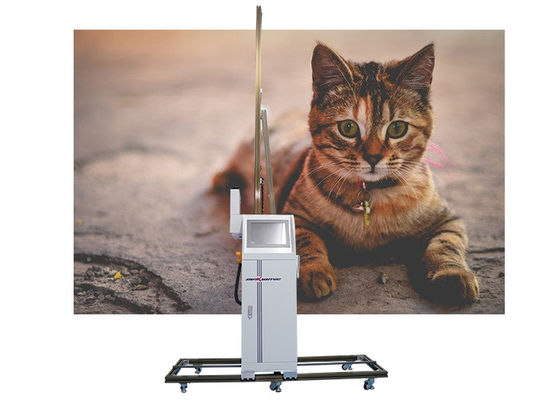

Large Format 8㎡/H 3D Wall Painting Printer
Cost-effective 3D 5D vertical uv ink wall inkjet printer Touch Screen PC Build direct To Wall Painting Machine
3D cnc wall painting machine using the original Japanese import printer head ,it is can print about 24 ㎡/h and directly sprayed
on the wall to print a variety of patterns, suitable for outdoor advertising culture publicity, indoor background wall
3D spray printing, with automatic probe, can automatically adjust the printing height according to the uneven surface
of the wall to avoid touching the sprinkler. Printing ink cost per square meter can be controlled at $0.35 per square meter, low cost, high income.
|
Equipment model:
|
Industrial control all-in-one machine
|
Nozzle type:
|
Epson industrial nozzles
|
|
Use pigments:
|
UV 6-color combination: C / LC / M / LM / Y / BK.
|
||
|
Support pictures:
|
mobile phone/camera shooting/network photos directly connected to the machine computer to export settings and print.
|
||
|
Print range
|
Vertical media, no restriction on material printing.
|
||
|
Print format:
|
Unlimited size, seamless splicing and printing beyond the height of the machine.
|
||
|
Print resolution:
|
720*720dpi,720*1080dpi,720*1440dpi,1080*1440dpi.
|
||
|
Printing speed (optional)
|
Fast mode
|
5-8㎡/H
|
|
|
Quality mode
|
3-5㎡/H
|
||
|
Voltage requirement:
|
90-246V/380W,47-63HZ
|
Power consumption:
|
20W without load, maximum 250W.
|
|
Operating environment:
|
(-20℃-50℃)(-4℉-122℉), 10%-70% relative humidity, non-condensing.
|
||
|
Storage environment:
|
(-21℃-50℃)(-22℉-140℉), 10%-70% relative humidity, non-condensing.
|
||
|
Motherboard specifications:
|
8-core high-speed CPU, 4GB memory, high-speed USB I/O
|
||
|
Wall detection:
|
Up and down double induction rock ultrasonic detector.
|
||
|
Computer system:
|
WIN7/WIN8/WIN10/XP
|
Machine software:
|
Built-in computer configuration and installation
|
|
Power-off memory:
|
support
|
Automatic white jump:
|
support
|
|
White color at the same time:
|
not support
|
Power-off battery life:
|
not support
|
|
Machine language:
|
Chinese/English
|
Laser positioning:
|
precise infrared cross positioning system
|
