| INK: | CMYKW 5 Colors | Ink Type: | CMYK+W UV Ink |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Product Name: | Wall Printer Machine,vertical Uv Ink Wall Printer |
| After-sales Service Provided: | Online Technology Support | Rip Software: | UltraPrint,Wellprint |
| Resolution: | 360 X720dpi / 720 X720dpi / 720 X1080dpi / 720 X1440dpi | Height: | Standard 2.5m,Customize Max 3.5M |
| High Light: | DX10 UV Wall Printer,VSDT Technology UV Wall Printer,DX10 wall 3d printing machine |
||

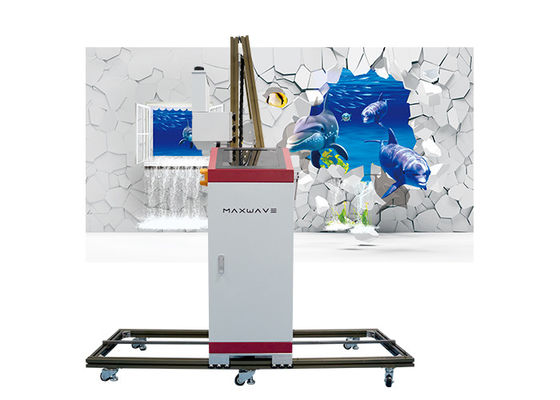

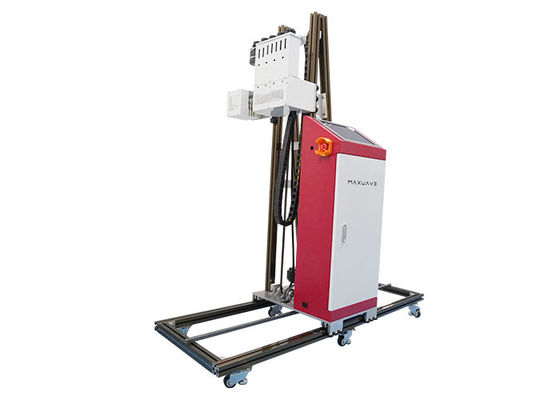

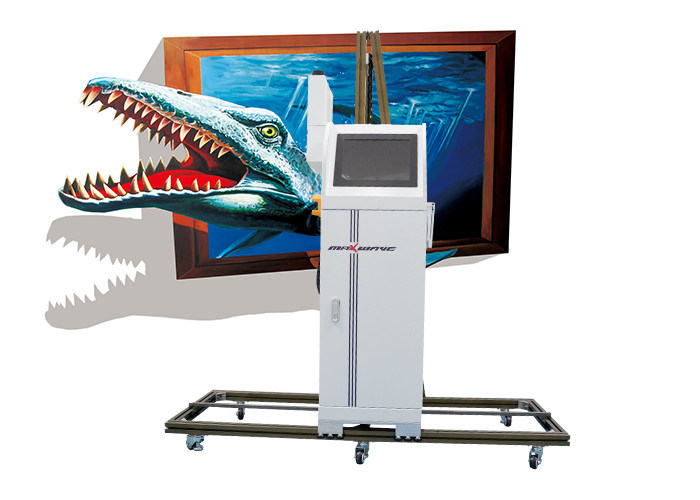

Indoor DX10 DX7 Double Head UV Wall Printer Machine VSDT Technology
Product Description:
1.Nozzle type:epson
2. Motor type:Servo motor
3. Wall detection:automatic distance measurement with dual probes,automatic telescopic 5cm
4. Ink supply system:four color independent ink tank(6 colors can be customized)
5. Easy for installation, use and maintain.
Technical Data:
| Model | 3D Wall Printer Machine | |
| Body | Aluminum-magnesium alloy, Frame structure | |
| Mode of Operation | Wireless touching screen | |
| Nozzle type | Japan design | |
| Sprinkler protection | Full-directional sprinkler protection fixing plate, effectively reducing the spray head damage | |
| Ink | Waterproof for wall printing | |
| The data transfer | Integrated head, telecommunication transmission system with optical fiber data transfer | |
| Surface tracking | Bi-curved BANNER sensor | |
| Motor technology | Brush-less motor with no bar grating, non- grating strip cleaning,free of maintenance | |
| Feeder system | Automatic feed | |
| Ink absorption technology | Improved ink absorb-er, good sealing performance, high efficiency of sprinkler cleaning, less ink waste, strong adsorption capacity | |
| Technology of coloured drawing | Adopt "VSDT variable ink-drop technology", high fault-tolerant feather technology, more uniform picture, more delicate ink point | |
| Memory recall | New interrupt patch function, automatic remember the break point, automatic recovery the starting position | |
| Speed of coloured drawing | 3 speed adjustable: High, Middle, Low | |
| Painted resolution | Indoor: 720 x 300 dpi, 720 x 600 dpi, 720 x 1200 dpi, 720 x 1440 dpi | Outdoor: VL720 x 300 dpi, VL720 x 600 dpi, VL720 x 1200 dpi, VL720 x 1440 dpi |
| Image type | JPG,BMP,TIFF,PDF,AI,PSD,CDR | |
| Actual painted size | Height :2500mm , Width (could be extended) | |
| Atlas type | The machine can store electronic files and external USB drives | |
| Power | AC110V (90-132V) / AC220V (180-264V) Alternating current, 47-63HZ | |
| Built-in power supply | Built-in lithium battery UPS back-up power, after power failure, Can still work for 10 hours when power failure (when battery is full-charged) | |
| The power consumption | 20W (no load) ,75W (general) , 250W (maximum) | |
| The noise | Standby < 20dBA, drawing < 50dBA | |
| Operation | -10℃ -60℃ (14 F-140 F) 10 -80% relative humidity with non - coagulated state | |
| Storage | -30℃-60℃(-22°F-140°F) 10%-80% relative humidity with non - coagulated state | |
| The system platform | Windows XP / Win7 / Win8 / Win9 / Win10 | |
| The main-board configuration | 8 core CPU, 4GB DDR memory, USB 2.0 / 3.0 data interface | |
| Machine language | Chinese, English (customize) | |
| Recognize | Green environmental certification, national standard test (GB 18582-2001, GBT 9756-2001), CE certification | |
| Fast mode | A | 10 M² /h |
| Production mode | B | 6 M² /h |
| Quality model | C | 4.5 M² /h |
| High precision model | D | 3 M² /h |
| Dazzle colour pattern | Adding dazzle mode, greatly enhance color saturation and the picture is more vivid & beautiful | |
