| Cooling Mode: | Industrial Water Chiller | Condition: | New |
|---|---|---|---|
| Application: | Mold Repair, Jewelry Welding | Specification: | 1100*800*2000mm |
| Origin: | China | Size Of Welding Spot: | 0.2-0.6mm |
| Highlight: | 300W Steel Laser Welding Machine,120J Steel Laser Welding Machine,300W metal laser welding machine |
||

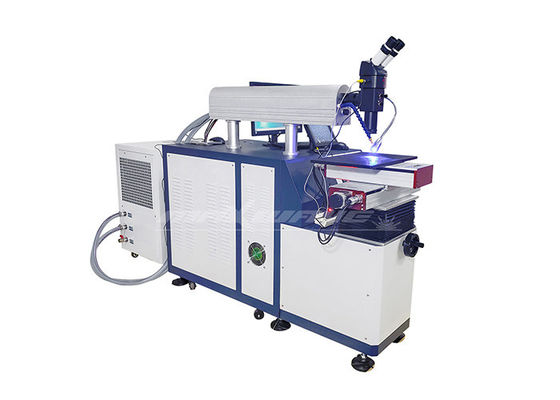

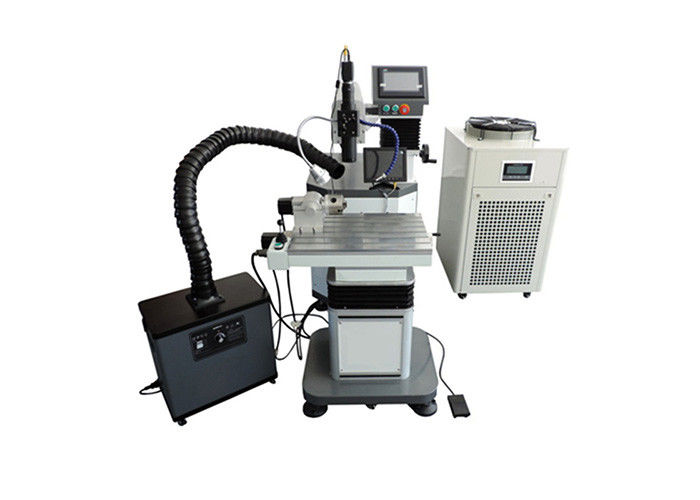

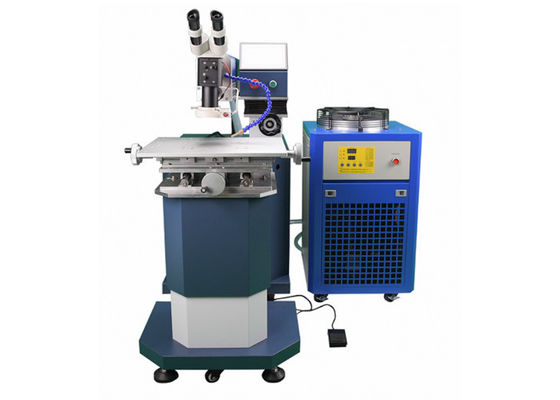

HD CCD Monitor Stainless Steel Laser Welding Machine 300W 120J
Stainless Steel Mould Repair Machine Laser Welder Mold Laser Welding Machine Price
Parameter
| Model | MW-200 | MW-300 |
| Max.Laser Power | 200W | 300W |
| Laser type | YAG | YAG |
| Laser Wavelength | 1064um | 1064um |
| Pulse width | 0.1-20ms | 0.1-20ms |
| Pulse Energy | 80J | 120J |
| Pulse Frequency | 0-50HZ | 0-50HZ |
| Laser Welding Area | 1m*1m*900mm | 1m*1m*900mm |
| Size of welding spot | 0.2-0.6mm | 0.2-1.0mm |
| Adjusting Range of Light spot | 1.8mm | 1.8mm |
| Max. Bearing Of Standard Work Bench | 100KG | 100KG |
| Repeating Precision of Work Bench | -0.001 | -0.001 |
| Sighting Positioning system | Microscope ,HD-CCD monitor system | Microscope ,HD-CCD monitor system |
| Cooling System | Water cooling | Water cooling |
| Max. Output Power | 200W | 300W |
| Power Supply | AC220VAC/380VAC+-15%/50HZ/25A | AC220VAC/380VAC+-15%/50HZ/25A |
| Manipulater system dimensions | 1100*800*2000mm | 1100*800*2000mm |
| Optical system dimensions | 400*540*650mm | 400*540*650mm |
| Power system dimensions | 860*600*940mm | 860*600*940mm |
| Cooling system dimensions | 860*600*940mm | 860*600*940mm |
Description
The machine mechanical arm could lifted up and down, 360 degree rotation, and can weld large molds with a radius of 1.5 meters and a few tons of weight. The equipment is equipped with roller skating and easy to move. It can be moved to injection or die-casting mold for direct repair.
Feature
Details
1.Adopted UK imported ceramic condenser cavity:
Corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.
2.Motic HD microscope:
10 x microscope amplification,cross cursor indicator,and adopting advanced automatic shading system.synchronization with the laser output of shielding gas,to make sure the solder joints and beautiful and smooth.
3.CCD Camera:
Adopts China famous brand CCD camera, LCD screen and red pointer.
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.The welding effect is more clear and intuitive.
4.X / Y / Z three-axis mobile work platform:
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
5.LCD Colorful Screen:
The operation interface of the welding machine control system is simple and practical.Pulse width, frequency and speed can be adjusted on the screen and no need PC. Can save 50 sets of frequently used welding parameters. easy to use.
6.Water Chiller:
BY-LW36 Industrial chiller.Cooling capacity of 3600W, high power cooling effect is more stable.With compressor could cool down laser quickly to ensure that the laser has stable power and efficient and fast operation.
Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, System alerts and stops working,can protect the working life of laser effectively.
7.LED Light:
Standard comes with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue microscope auxiliary light. The auxiliary lighting uses energy-saving high-light bulbs with clear imaging and good heat dissipation effect, and will not burn the skin for a long time.
8.Foot Pedal:
Protective foot switch can prevent the switch from being touched by mistake.
