Product Details:
Payment & Shipping Terms:
|
| Chiller: | Water Cooling | Application: | Gold Sliver Goldsmiths Dental Lab |
|---|---|---|---|
| Usage: | Jewelry Welding | Max Power: | 200W |
| Welding Thickness: | 0.5MM -2MM | Micro: | CCD+Microscope (combined) |

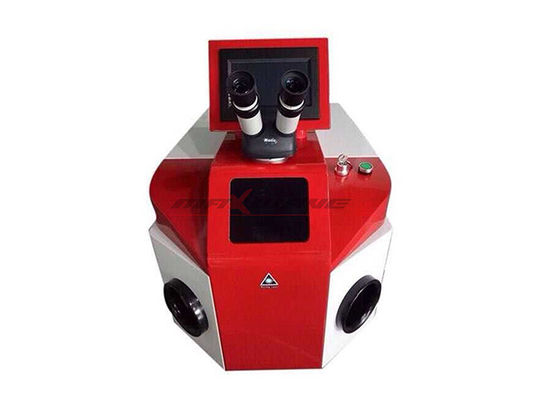

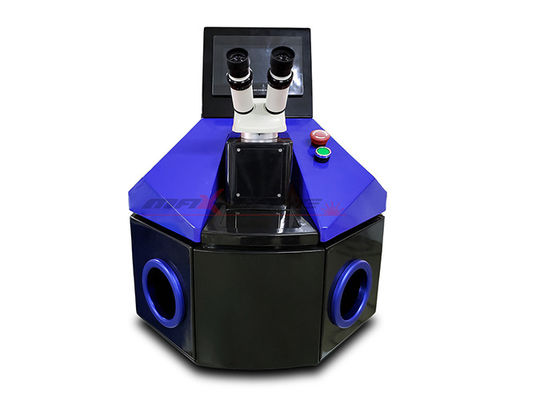

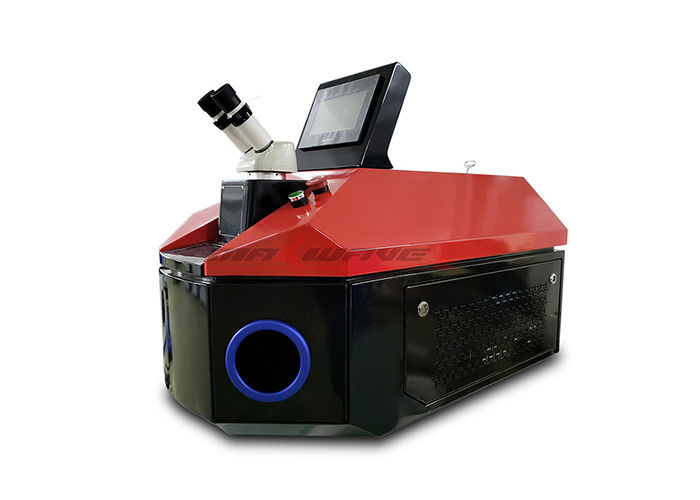

Goldsmiths Jewelry Laser Welding Machine Spot Welder SS Jewelry Welder Machines
1. Main feature
1) Whole machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.
2) Big inner space, it is convenient for placing tools and fixtures.
3) It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4) It is easy to replace dust screen, clean working area and recycle welding slag.
5) With the LED ring-shaped astral lamp which can be highlighted and 10x microscope, the observation on welding position is much clearer.
6) More precise light spot, it meets the requirement of precision welding.
| Model | OPT-JW200 |
| Laser Power | 200W |
| Laser Type | YAG |
| Laser wavelength | 1064NM |
| Max single pulse Energy | 100J |
| Pulse Width | 0.1-10ms |
| Frequency | 0-20HZ |
| Welding depth | 0.1-2mm |
| Spot size | 0.1-3mm |
| Power Consumption | 3kw |
| Power Supply | AC220±5%/50HZ/110V/60HZ |
| Cooling method | Built-in Water Cooling |
| New Weight | 70KG |
| Gross Weight | 85KG |
| Machine Dimension | 850x500x600mm |
| Package | 950x550x650mm |
3. Welding Material
Platinum, Karat Gold, Silver, Titanium, Stainless Steel, Cooper, Aluminum, other metal and alloy.
4. Application Area
Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, Dental,watches, military.
5.Advantage of our machine
1)New Design:Pure white design highlights the similicity of beauty.
2)Real manufacturer:80% of the parts of the jewelry laser welding machine are designed by OPTIC including body,laser source,YAG crystal,Cavity etc.This give us strong custom ability,trused quality and reliable after-sale service.
3)Easy operation:Control board with ccd camera all in one.
4)Affordable price:$4200 FOB Shenzhen(Price will change due to exchange rate and the cost changes,please contact us for the price recently)
5)The machine can work with nearly all the power supply around the world.We can make the machine to 220V single phase 50HZ or 110V single phase.
