Product Details:
Payment & Shipping Terms:
|
| Printing Width: | Inifitely | Printer Name: | Wall Painting Machine |
|---|---|---|---|
| Dimension(l*w*h): | 658*631*639(mm) | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas,No Overseas Service Provided,Overseas Service Center Available |
| Voltage: | AC 220/110V | Filament: | ABS,PLA,etc,TPU,Wood |
| High Light: | GB18582 Vertical Wall Inkjet Printer,220VAC Vertical Wall Inkjet Printer,220VAC Wall Painting Machine |
||

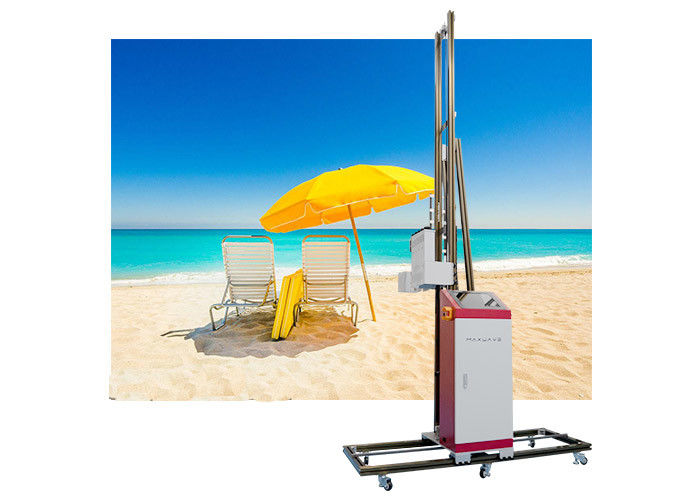

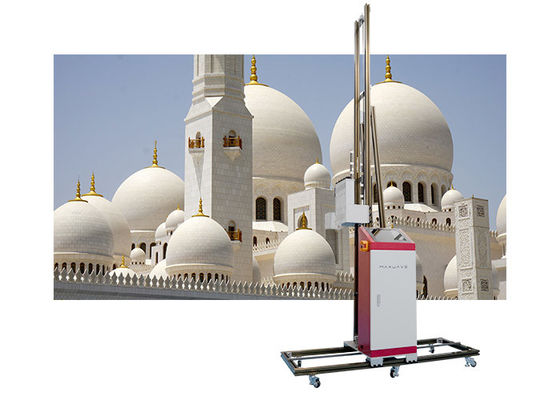

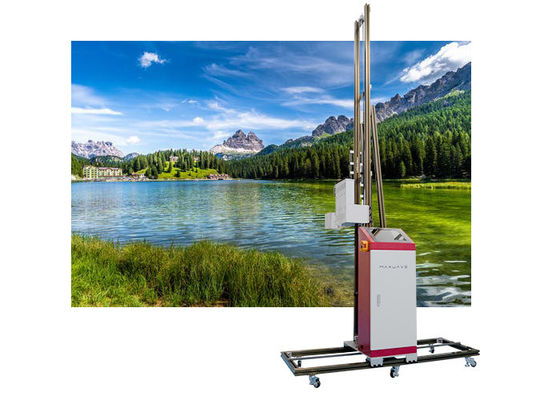

Vertical Wall Inkjet Printer Direct To Wall Painting Machine Automic Move By Wheels
Parameter
| Machine model/Configurations | |||
| Equipment type |
MW-UP200T |
||
| Device Configuration |
2560 UV ink advanced type |
||
| Use ink |
Special environmentally friendly organic ink |
||
| Operation method |
Wired printing |
||
| Transport |
Folding |
||
| Power consumption |
No load 20W, maximum 250W |
||
| Curved surface tracking |
Hyperboloid Banner sensor, up and down bidirectional sensing |
||
| Ink supply system |
Negative pressure system single color single supply, 4 color ink tank |
||
| Print size |
2.3 meters in height and width, printing with any width can be achieved by guide rail splicing |
||
| Construction noise |
Standby＜20DBA, drawing＜72DBA |
||
| Support pictures |
Support mobile phone/digital camera photos and network download |
||
| Power requirement |
Mains 220VAC wide voltage 90-246VAC |
||
|
Use media |
Wall surface: interior and exterior wall putty wall, latex paint wall, white, imitation porcelain wall, rice paper, canvas, wall clothing, painted glaze, Shell powder, colorful paint, etc. wall glass, ceramic tiles, wooden boards, acrylic, PVC and metal plates, etc. | ||
| Image Format | Including PSD, CDR, JPEG, JPG, PNG, BMP, TIFF, EPS, AI and PDF formats | ||
| Color painting technique | Micro piezoelectric inkjet technology, variable ink droplets, Gaorong wrong feathering technology, and power failure during construction can automatically restore memory. | ||
| Print resolution | 360X720DPI/720X720DPI/720X1080DPI/720X1440DPI | ||
| Operating environment | 0℃-50℃(32°F-122°F) 10%-70% relative humidity, non-condensing | ||
| Storage environment | —21℃-60℃ (-5°F-140°F) 10%-70% relative humidity, non-condensing | ||
| Operating platform | Microsoft Windows XP/7/8/9/10 | ||
| Certification qualification | Green environmental protection certification, international testing passed (GB18582-2001, GBT9756-2001), CE certification | ||
| Printing mode | PASS | Square meter/hour (㎡/h) | |
| Fast mode | A | 10 | |
| Production mode | B | 8 | |
| Quality mode | C | 6 | |
| High-definition mode | D | 5 | |
| Dimensions | Machine size (mm): length 800*width 360*height 2500 | Packing size (mm): length 900*width 510*height 1500 | |
| Machine weight | 70kg of machine (30kg of body + 4 rails/40kg) | Packing weight with wooden box 125kg | |
| The key components | |||
| Nozzle specification | Epson HD head | Electric machine | 3 servo motors + reducer |
| Main board | 4 core high speed CPU 6GB memory high speed USB 3.0 | Distance detection | 2 nanodetectors |
| Level instrument | Israel imports | Random computer | Built-in industrial PC |
| UPS power supply | Super uninterruptible power supply (power failure) | Laser positioning | Precision infrared laser probe |
| X axis guide rail | Servo motor linear drive module | Y axis guide rail | High-strength precision rail |
| Track | 4 sections of 1.5 meters, a total of 6 meters | Atlas | Cloud Disk HD Gallery |
| Machine language | Chinese/English (other languages can be customized) | UV curing lamp | Spray and dry UV lamp |
| Note: The above technical parameters are design parameters. If there is any difference, the actual use efficiency of the equipment shall prevail. | |||
