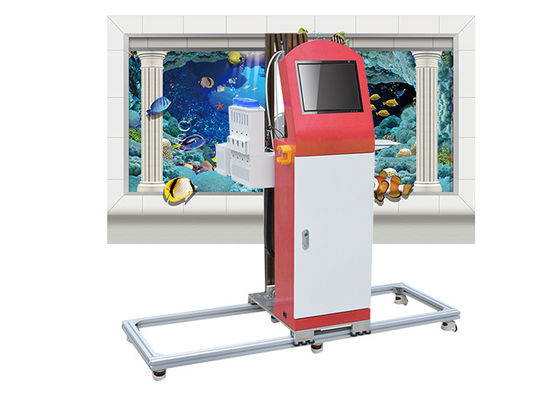

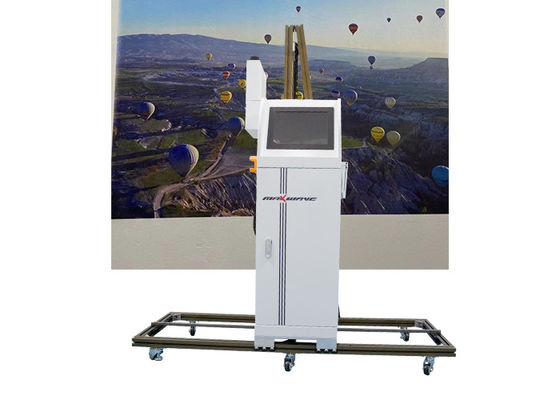

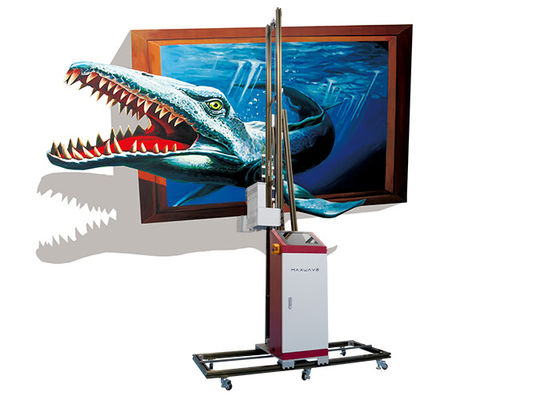

FCC Outdoor 2500mm Height UV Wall Printer 3D For Children'S Room
Outdoor UV Wall Printer Machine Vertical Inkjet Wall Printing Full Automatic 3D Mural Painting Wall Decor
Product Description:
1. wall printing machine is widely used in art wall printing ,such as school, hotel,tourist,exhibition hall etc.
2. Vertical wall printer use the Perfect Laser wall painting specific ink, no need to heat at minus10 ℃
to zero 60 ℃ in the normal work environment, no ice, and constantly inking.
3. Single base color, one-way ink supply channel. pigment library, multi-color one, easy to take, and the
screen of the horizontal wall printer is clear and bright.
4. wall printers body design of horizontal wall printer lines smooth, without a large chassis, the
program software all integrated to facilitate the demolition and handling, to work und1440dpi.
Technical Data:
| Model | 3D Wall Printer Machine | |
| Body | Aluminum-magnesium alloy, Frame structure | |
| Mode of Operation | Wireless touching screen | |
| Nozzle type | Japan design | |
| Sprinkler protection | Full-directional sprinkler protection fixing plate, effectively reducing the spray head damage | |
| Ink | Waterproof for wall printing | |
| The data transfer | Integrated head, telecommunication transmission system with optical fiber data transfer | |
| Surface tracking | Bi-curved BANNER sensor | |
| Motor technology | Brush-less motor with no bar grating, non- grating strip cleaning,free of maintenance | |
| Feeder system | Automatic feed | |
| Ink absorption technology | Improved ink absorb-er, good sealing performance, high efficiency of sprinkler cleaning, less ink waste, strong adsorption capacity | |
| Technology of coloured drawing | Adopt "VSDT variable ink-drop technology", high fault-tolerant feather technology, more uniform picture, more delicate ink point | |
| Memory recall | New interrupt patch function, automatic remember the break point, automatic recovery the starting position | |
| Speed of coloured drawing | 3 speed adjustable: High, Middle, Low | |
| Painted resolution | Indoor: 720 x 300 dpi, 720 x 600 dpi, 720 x 1200 dpi, 720 x 1440 dpi | Outdoor: VL720 x 300 dpi, VL720 x 600 dpi, VL720 x 1200 dpi, VL720 x 1440 dpi |
| Image type | JPG,BMP,TIFF,PDF,AI,PSD,CDR | |
| Actual painted size | Height :2500mm , Width (could be extended) | |
| Atlas type | The machine can store electronic files and external USB drives | |
| Power | AC110V (90-132V) / AC220V (180-264V) Alternating current, 47-63HZ | |
| Built-in power supply | Built-in lithium battery UPS back-up power, after power failure, Can still work for 10 hours when power failure (when battery is full-charged) | |
| The power consumption | 20W (no load) ,75W (general) , 250W (maximum) | |
| The noise | Standby < 20dBA, drawing < 50dBA | |
| Operation | -10℃ -60℃ (14 F-140 F) 10 -80% relative humidity with non - coagulated state | |
| Storage | -30℃-60℃(-22°F-140°F) 10%-80% relative humidity with non - coagulated state | |
| The system platform | Windows XP / Win7 / Win8 / Win9 / Win10 | |
| The main-board configuration | 8 core CPU, 4GB DDR memory, USB 2.0 / 3.0 data interface | |
| Machine language | Chinese, English (customize) | |
| Recognize | Green environmental certification, national standard test (GB 18582-2001, GBT 9756-2001), CE certification | |
| Fast mode | A | 10 M² /h |
| Production mode | B | 6 M² /h |
| Quality model | C | 4.5 M² /h |
| High precision model | D | 3 M² /h |
| Dazzle colour pattern | Adding dazzle mode, greatly enhance color saturation and the picture is more vivid & beautiful | |
