| Brand Name: | Laser Welders 200w | Laser Source: | Yag Laser System |
|---|---|---|---|
| Usage: | Widely Used | Application: | Jewelry Repair Machine |
| Welding Thickness: | 0.5MM -2MM | Apply For: | Ring Bangle Bracelet Platinum Jewelry |
| Highlight: | 200W Portable Laser Welding Machine,200W Laser Welding Machine,200W portable laser welder |
||

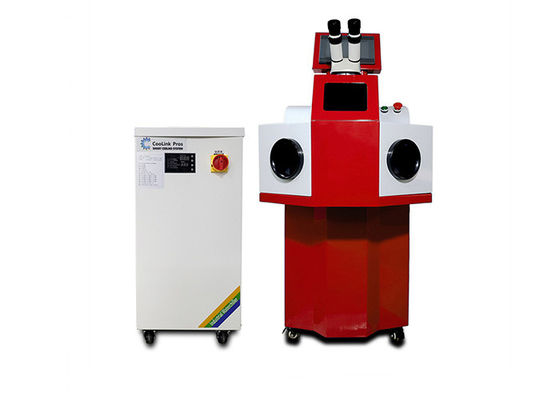

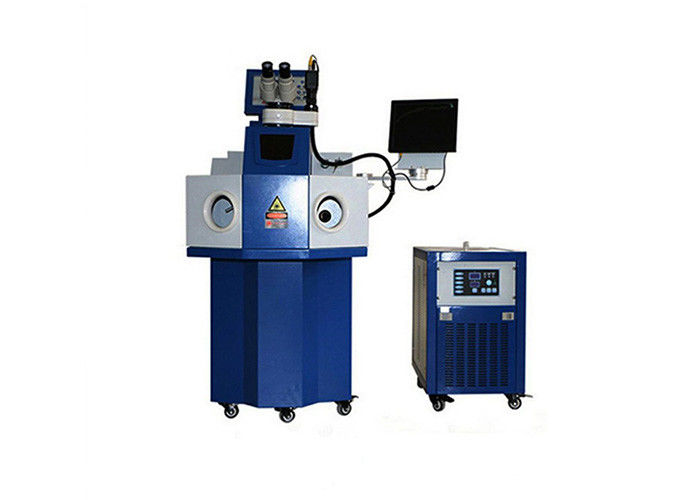

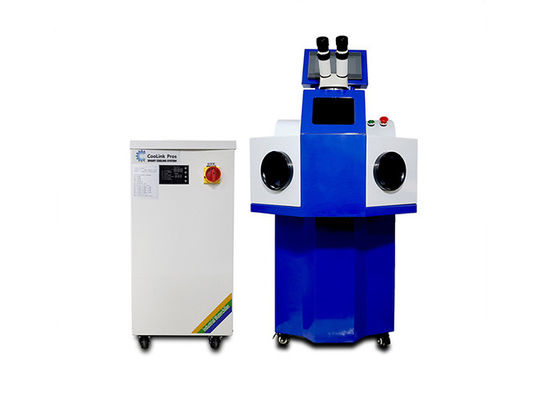

External Water Cooling Portable Laser Welding Machine 200W YAG Spot
External Water Cooling Welding Machine YAG Spot Welder Ring Necklace SS Jewelry Welder Machines
1. Main feature
Laser spot welding using laser deposition welding, laser-welding technology for high thermal energy and focus point, internal diffusion heat by conduction to the surface by controlling the laser pulse width, energy, peak power and repetition rate, and other parameters, make melt, forming a specific pool.Because of its unique advantages, widely used in the jewelry processing and micro and small parts in the welding field.
2. Main Datas
1) Parameter adjustment design of the double-sided Board, increase adjustment rocker in a closed cavity, operation more convenient
Professional work within the cavity design, easy to clean up and recycling of precious metals.
2) Laser power, pulse width, and frequency adjustable, suitable for welding of various metal materials
3) 10X microscope magnification, cross hair indicates, and adopt high-speed liquid crystal light valve automatic blackout blinds. Output shielding gas and laser synchronization to ensure that solder joint appearance, the solder will not oxidizing discoloration
4) With 24 hours of continuous operation, stable performance of the whole machine, 10,000-hour maintenance
3.Parameters
| Model | OPT-JW200 |
| Laser Power | 200W |
| Laser Type | YAG |
| Laser wavelength | 1064NM |
| Max single pulse Energy | 100J |
| Pulse Width | 0.1-10ms |
| Frequency | 0-20HZ |
| Welding depth | 0.1-2mm |
| Spot size | 0.1-3mm |
| Power Consumption | 3kw |
| Power Supply | AC220±5%/50HZ/110V/60HZ |
| Cooling method | Built-in Water Cooling |
| New Weight | 70KG |
| Gross Weight | 85KG |
| Machine Dimension | 850x500x600mm |
| Package | 950x550x650mm |
