Product Details:
Payment & Shipping Terms:
|
| HS Code: | 8443322100 | Colors Channel: | Cmyk+Ww 6 Colors |
|---|---|---|---|
| Transport Package: | Plywood Boxes | Printing Speed: | A4 Size / 50secs. |
| Cooling System: | Water Circulation Cooling System | Dry System: | LED UV Lamp Drying System |
| High Light: | 720dpi UV Bottle Printer,DX9 UV Bottle Printer,720dpi water bottle printing machine |
||

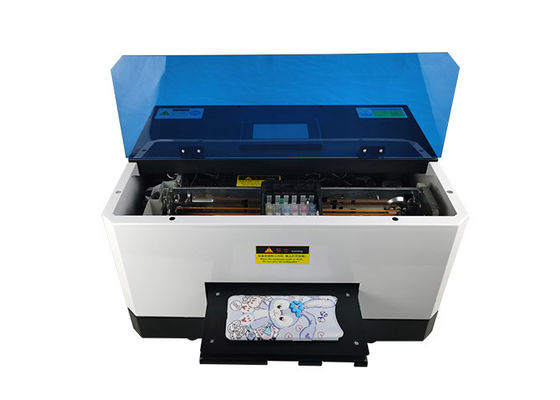

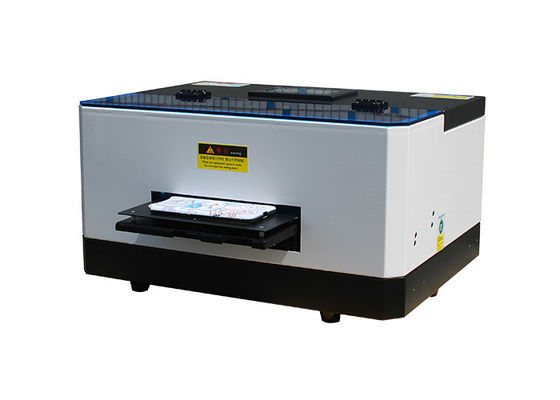

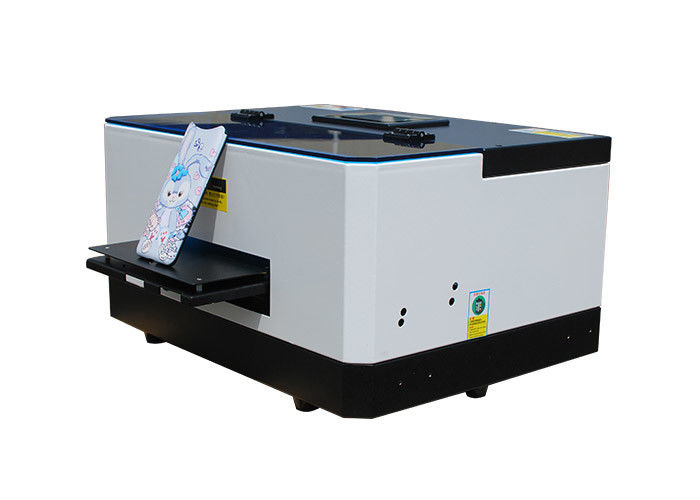

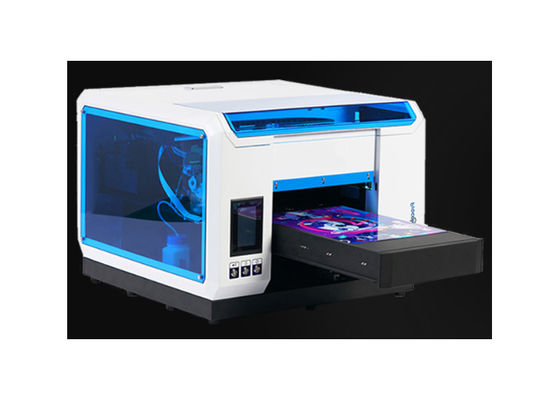

CE Two Heads Flatbed 720dpi UV Bottle Printer DX9 Embossing 3D
2 Heads Cylinder Mug Bottle Phone Case UV Flatbed Printer LED UV Printer
Parameter
| Printer Model | 3360 UV Bottle Printer |
| Printing tech | Micro Piezo Technology 2 pieces DX8 TX800 printheads |
| Printing Size | 33cm*60cm Size |
| Print resolution | 2880dpi |
| Accepted material's height | 20CM |
| Print quality | True Photographic quality |
| Printing direction | Smart Bi-directional Printing Mode |
| Printing speed | 720 dpi 50 seconds/A4 size |
| 1440 dpi 100 seconds/A4 size. | |
| Applicable industry | Rigid PVC board, glass, plastic, organic board, leather, rubber, specialpaper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc |
| Max Media weight | 20 KGs NET. |
| Operating system | Windows XP/ME/Vista/Win7/Win10 |
| Interface | Double USB port |
| Languages | English |
| Ink colors | C, M, Y, K, White / Varnish |
| Ink type | UV LED ink |
| Ink supply | 100 ml/bottle |
| Height adjustment | Automatic |
| Driving power | 110 V/ 220 V. |
| Power consumption | 36 W/ Hour. |
| Ink consumption | 15 ML/SQM. |
| Software | Maintop, CorelDraw, Illustrator, |
| RIP Software | Free RIP software can print all colors at one time |
| NW/GW | 62KG/85KG |
| Packing Size | 920mm x 750mm x 620mm |
Description
3360 uv bottle printer that made by Maxwave digital technology, it can print on the glass, metal, plastic, acrylic, ceramic...etc. with vivid color and fast speed, it is really a good choice for entire level customers or kiosk using.
it was made with Chinese famous stable board system and 2 Pieces TX800 DX8 Printhead, can get max. printing speed by A4/50s, 6 color model, so can print on dak materials to get a good white ink density. And conbine with Ultra RIP software, can print all colors at one pass.
Main features
Application
FAQ
Q1: What materials can UV printer print?
A: UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2: Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3: Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4: Does printing materials must be sprayed a pre-coating?
A: Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5: How can we start to use the printer?
A: We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer or anydesk and video call will be help.
Q6: What about the warranty?
A: We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7: What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8: Where can I buy the spare parts and inks?
A: All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9: What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it's better to power on machine 3 days later to do a test and auto clean.
