| Color: | CMYK+W | Ink Type: | UV Ink |
|---|---|---|---|
| Type: | Inkjet Wall Printer | Usage: | Water Printing Machine |
| Noise: | Standby<20dBA,Drawing<72dBA | After-sales Service Provided: | Online Tech Support |
| Highlight: | 72dBA Wall 3d Printing Machine,CMYK Wall 3d Printing Machine,72dBA direct wall printing machine |
||

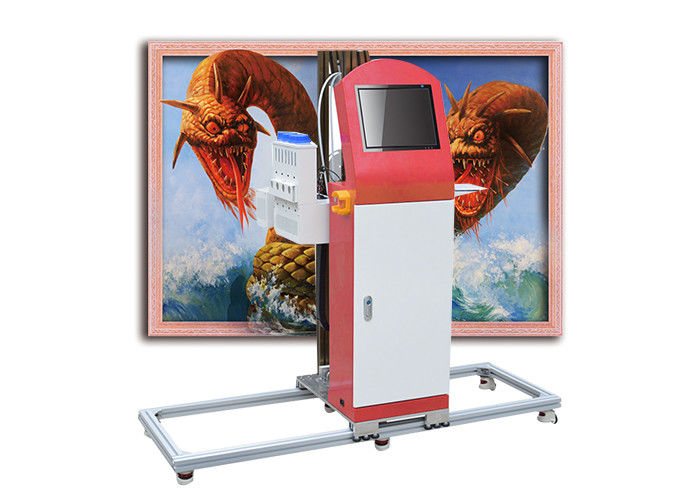

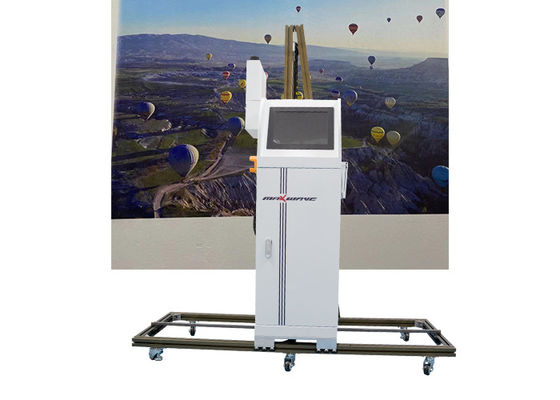

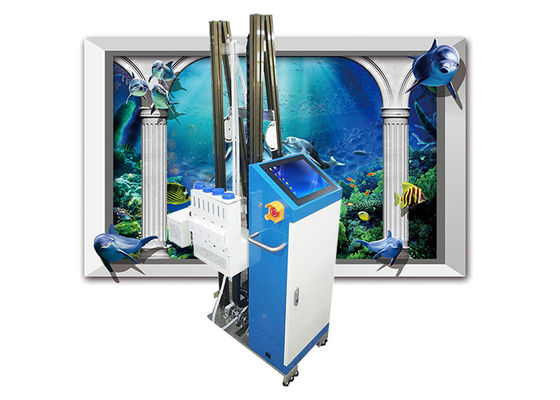

Automatic Lifting 72dBA Wall 3d Printing Machine Aluminum Alloy
Product Description:
Ink Type:UV Ink/Water-based ink
Product name:Direct to Wall Painting Machine 3D Wall printer
Ink Consuption:10-20 per sqm
Number of Print head:Dual
Wall Distance:10mm effective printing distance
Lifting Fuction:Automatic
Use paint:custom wall ink(waterproof and moisturizing)
Nozzle type:epson
Motor type:Servo motor
Application
ceramic tiles, glass walls, latex paint walls, diatom mud walls, white powder walls, putty walls, etc.
Product Parameters:
| Model | 3D Wall Printer Machine | |
| Body | Aluminum-magnesium alloy, Frame structure | |
| Mode of Operation | Wireless touching screen | |
| Nozzle type | Japan design | |
| Sprinkler protection | Full-directional sprinkler protection fixing plate, effectively reducing the spray head damage | |
| Ink | Waterproof for wall printing | |
| The data transfer | Integrated head, telecommunication transmission system with optical fiber data transfer | |
| Surface tracking | Bi-curved BANNER sensor | |
| Motor technology | Brush-less motor with no bar grating, non- grating strip cleaning,free of maintenance | |
| Feeder system | Automatic feed | |
| Ink absorption technology | Improved ink absorb-er, good sealing performance, high efficiency of sprinkler cleaning, less ink waste, strong adsorption capacity | |
| Technology of coloured drawing | Adopt "VSDT variable ink-drop technology", high fault-tolerant feather technology, more uniform picture, more delicate ink point | |
| Memory recall | New interrupt patch function, automatic remember the break point, automatic recovery the starting position | |
| Speed of coloured drawing | 3 speed adjustable: High, Middle, Low | |
| Painted resolution | Indoor: 720 x 300 dpi, 720 x 600 dpi, 720 x 1200 dpi, 720 x 1440 dpi | Outdoor: VL720 x 300 dpi, VL720 x 600 dpi, VL720 x 1200 dpi, VL720 x 1440 dpi |
| Image type | JPG,BMP,TIFF,PDF,AI,PSD,CDR | |
