Product Details:
Payment & Shipping Terms:
|
| Usage: | Wall Paint Printer | Ink Type: | UV Ink |
|---|---|---|---|
| Data Transmission Mode: | USB | Painting Direction: | Vertical |
| Automatic Grade: | Full Automatic | Painting Speed: | Multispeed Adjustable, 1-8m2/h |
| Highlight: | 2880DPI Vertical Wall Painting Machine,FCC Vertical Wall Painting Machine,2880DPI direct to wall inkjet printer |
||

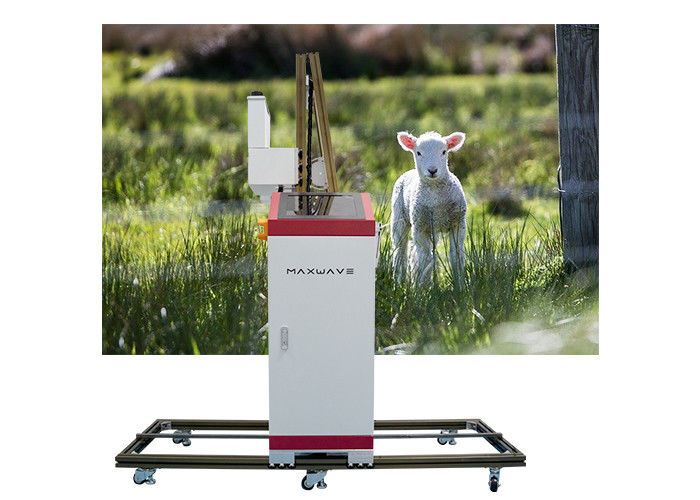

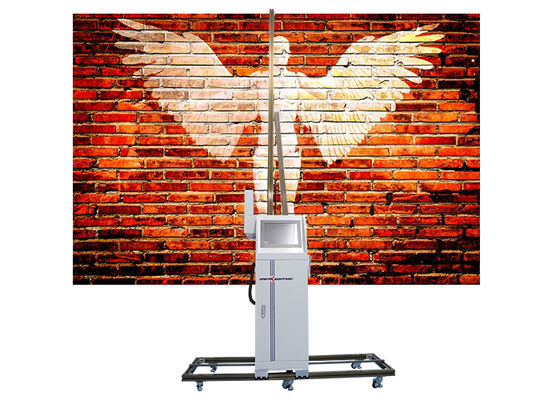

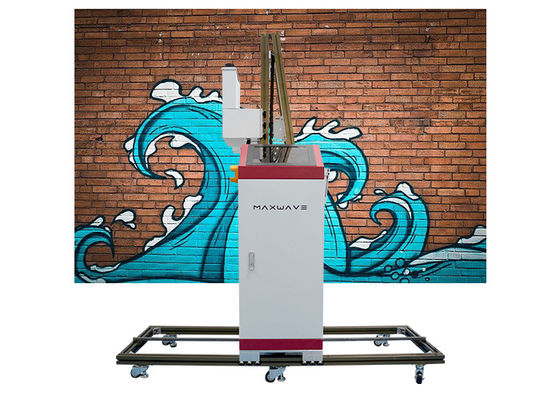

Auto Cleaning 2880DPI Vertical Wall Painting Machine
Direct To Wall UV Wall Printer Art Wall Printing Machine Varnish CMYKW Inkjet Wall Printer
Product Advantages:
1.The frame of printer is made of profiles made of special formula aluminum magnesium alloys.
2.Simple multi-color integrated ink cartridge ink supply system, stable, convenient, support fast
pipeline separation, separation of hydropower, ready to use and release;
3.Special track fasteners, quick demolition, quick installation, simple operation, convenient to use;
no need to move the machine in the middle of the construction and no need to do splicing.
4.The special ink works normally at minus 10 °C to zero at 60 °C. It does not freeze and continues to ink.
5.Bright colors, strong three-dimensional sense; Non-fading, non-peeling, scrub resistant, green environmental protection certification, national standard test qualified.
| Basic parameters | |
| Data transmission mode | USB |
| L*M*H (main body from ground) | Standard model: 70*31*239cm |
| Printhead | Auto cleaning |
| Ink consumption | Ink consumption |
| Ink base color | Dual 5 colors (CMYK, CMYK), use special uv ink |
| Painting precision | From 720DPI up to 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Operation/Storage | -10℃-35℃(59°F-95°F)/10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m, unlimited width |
| Machine weight | 71kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, metal, glass, PVC, etc. |
Printer Application:
The wall Printer has simple structure: frame , main box, painting head,
pulley and guide rail fastener, etc. the flatbed printer can work indoor and outdoor for printing skim coating wall putty wall, latex paint wall, white wall , imitation porcelain wall, Tile, glass, rice paper, canvas, wall clothing, colored glaze, shell powder, color paint and other walls, etc.
The wall printer is widely used in shop decoration, office space decoration, advertising walls, theme hotels, hotels, restaurants, kindergartens,entertainment and leisure centers, KTV, schools, kindergartens, scenic spots, sports fields, naked eyes 3D wall paintings and personalized family decoration. If you want to replace the screen, just brush the original screen and print it again.
