| Pulse Width: | 0.1-20ms | Condition: | 100% New |
|---|---|---|---|
| Wavelength: | 1064nm | Warranty: | 1 Year |
| Single Pulse Energy: | 90J | Dimensions: | 840x450x500mm |
| Highlight: | YAG Laser Welding Machine,90J YAG Laser Welding Machine,90J Jewellery Spot Welder |
||

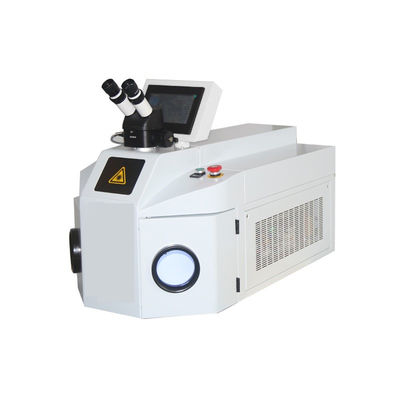

90J YAG Laser Welding Machine 10x Microscope Jewellery Spot Welder
200W YAG silver gold rings pendants denture jewelry laser welding machine
Product description
The jewelry laser welder is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine's process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine's unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.
Parameters
| Model | OPT-JW200 |
| Laser Power | 200W |
| Laser Type | YAG |
| Laser wavelength | 1064NM |
| Max single pulse Energy | 100J |
| Pulse Width | 0.1-10ms |
| Frequency | 0-20HZ |
| Welding depth | 0.1-2mm |
| Spot size | 0.1-3mm |
| Power Consumption | 3kw |
| Power Supply | AC220±5%/50HZ/110V/60HZ |
| Cooling method | Built-in Water Cooling |
| New Weight | 90KG |
| Gross Weight | 110KG |
| Machine Dimension | 850x500x600mm |
| Package | 950x550x650mm |
Main feature
1. Whole machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.
2. Big inner space, it is convenient for placing tools and fixtures.
3. It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4, It is easy to replace dust screen, clean working area and recycle welding slag.
5, With the LED ring-shaped astral lamp which can be highlighted and 10x microscope, the observation on welding position is much clearer.
6, More precise light spot, it meets the requirement of precision welding.

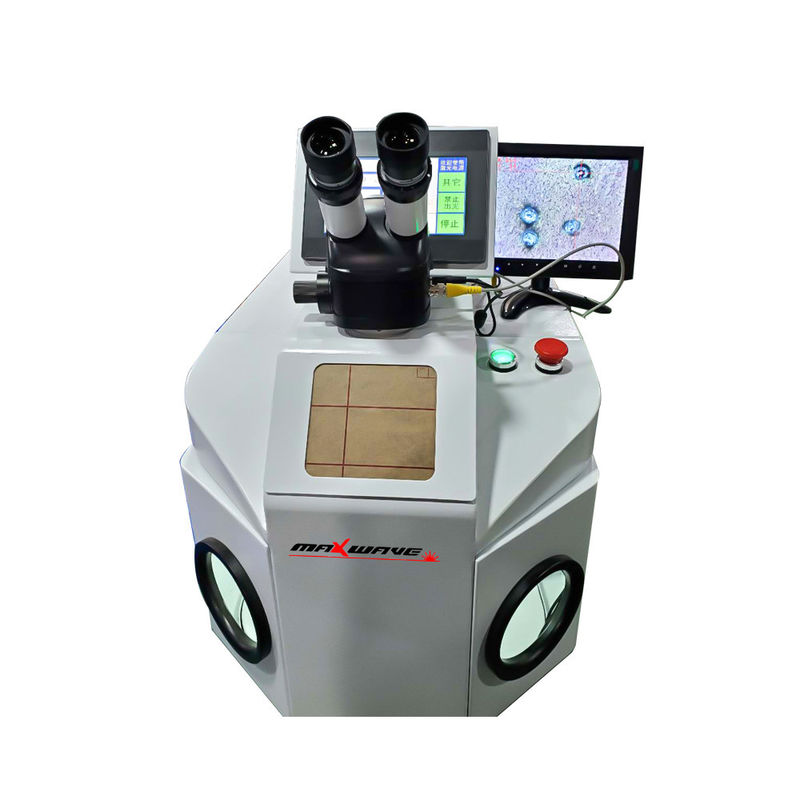

Product details
