| Cooling Mode: | Water-cooling And Protection System | Application: | Laser Engraving |
|---|---|---|---|
| Certification: | CE,SGS | Cnc Or Not: | Yes |
| Usage: | Jewelry Welding | Power: | 200W 60W |
| Max. Welding Thickness: | 0.5mm-ss | Observation: | CCD+Microscope (combined) |
| Highlight: | 60W Jewelry Laser Welding Machine,60W Laser Welding Machine,60W mini laser welder |
||

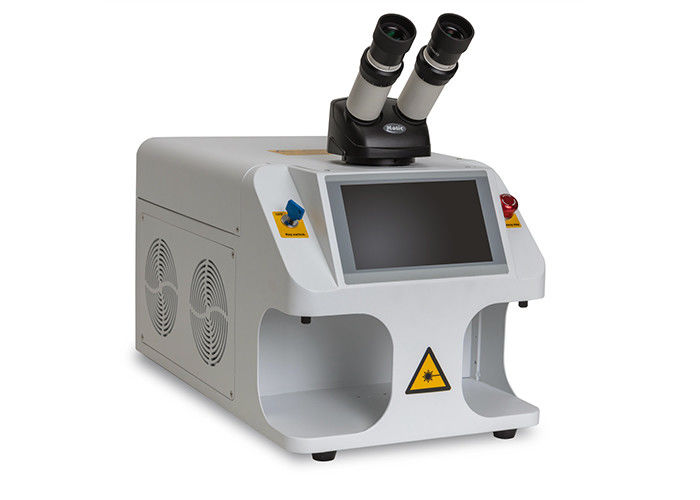

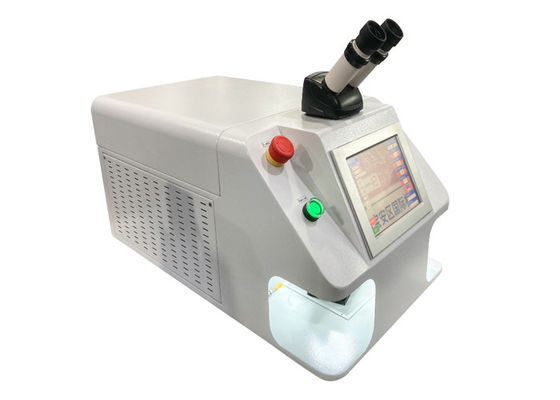

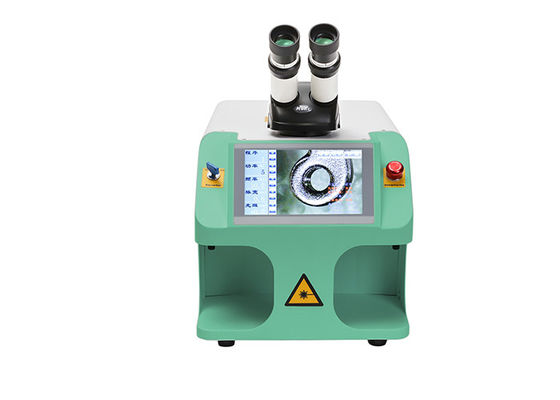

60W Jewelry Laser Welding Machine
Main Features:
1. All accessories of the mini jewelry laser welder using high technology integrated technology, stable and functional.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance
5. Human-based design accords with ergonomics, no fatigue after long time working.
Product Data:
| Machine | Mini Jewelry laser welding machine |
| Power Supply | AC220V / 50Hz |
| Pulse Width | 1.00-10.0 Hz |
| Pulse Width | 0.1-10.0ms |
| Spot Size | 0.1- 3.0mm |
| Power | 60w |
| Pulse Energy | 45J |
| Power Consumption | 2Kw |
| Working Temperature | 30℃ |
| Cooling method | Water Cooling |
| Operation method | Touch control panel |
| Wavelength | 1064nm |
| Machine Dimension | 510*295mm*395mm |
| Net Weight | 28KG |
