| Working Accuracy: | 0.01mm | Laser Type: | CO2 Laser |
|---|---|---|---|
| Laser Source Brand: | Mactron | Marking Area: | 600mm*600mm |
| Marking Depth: | 2mm | Wavelength: | 10600nm |
| High Light: | 1.5KW Co2 Laser Marking Machine,100w fiber laser engraver,1.5KW co2 marking machine |
||
Axis Dynamic 1.5KW Co2 Laser Marking Machine 800*800mm Water Cooling
Laser Marker Denim Jeans Wood CO2 Laser Marking Engraving Machine Axis Dynamic
CO2 Laser Marking Machine

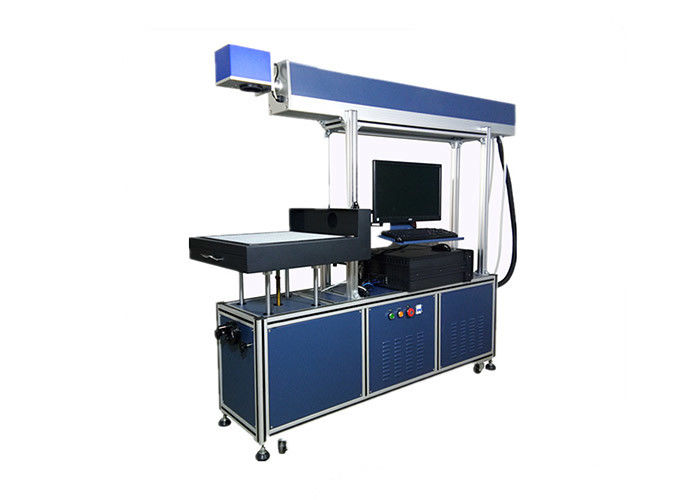

This series Co2 3 Axis Dynamic Focusing Laser Marking Machine is equipped with Reci co2 laser tube, 600*600 big working area.
Good prise saving, Specially used in industrial fabric, laser firing in jeans wear, wood etc. Equipped with hi-tech dynamic focusing
scanning mirror and control card, the 3D Dynamic Laser Machine is excellent in the aspects of algorithm optimization, high speed
of marking and cutting, and other powerful functions.It is specially designed for the laser scanning with tiny light spot, large working
range and high flexibility. Furthermore, this equipment is characterized by high strength in use, compact construction, dust-proof,
convenient and accurate installation, strong anti-jamming ability, etc.
| Laser Power | 100W |
| Laser Type | CO2 Laser |
| Processing Area | 110*110MM/175*175MM,200*200MM,300*300MM,600*600MM800*800MM(Optional) |
| Wavelength | 10.6um |
| Max.Marking Speed | <8000MM/S |
| Max.Marking Depth | ≤0.5MM |
| Repetition Precision | 0.03MM |
| Response Time | 0.8ms |
| Cooling Mode | Water Cooling |
| Graphic Formats Supported | PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG |
| Power source | AC110V/220V ± 10%, 50/60HZ |
| Gross Power | <1.5KW |
| Operating temperature | 10℃-30℃ |
| Warranty | 1 Year |
| Humidity | 5% to 85% |
| Working Conditions | Clean, Less Dust |
Marking Samples:
