| Pulse Width: | 0.1-20ms | Condition: | New |
|---|---|---|---|
| Wavelength: | 1064nm | Warranty: | 1 Year |
| Single Pulse Energy: | 100J | Demension: | 920mm*560mm*1220mm (L*W*H) |
| Highlight: | 20ms Laser Soldering Machine,6KW Laser Soldering Machine,gold6kw jewellery laser soldering machine |
||

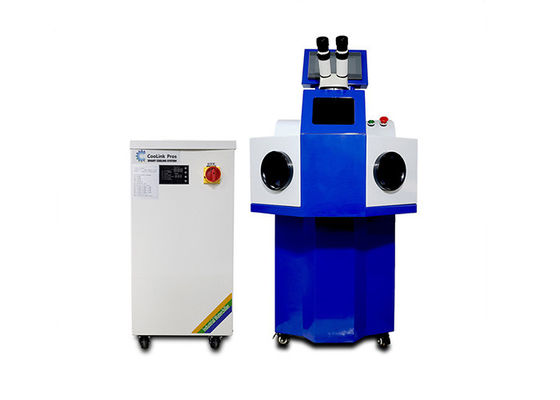

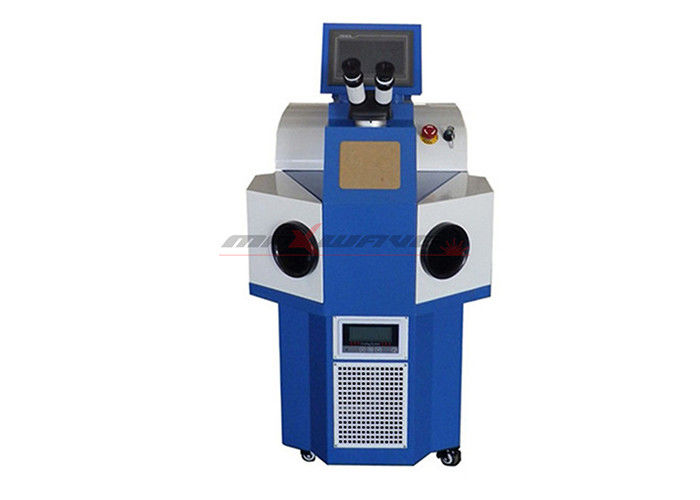

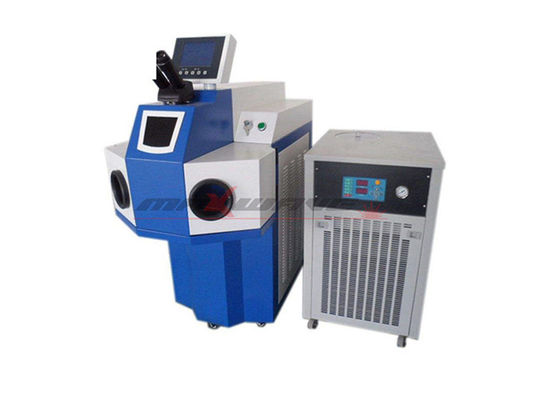

20ms 6KW Microscope Laser Soldering Machine For Gold Jewellery
Gold Silver Ring Necklace Portable Jewelry Mould Laser Spot Welding
Machine & Laser Machinery
Parameters
| Laser working substance | Nd3+:YAG |
| Laser power | 260W |
| Max. single-pulse energy | 100J |
| Total power | 6KW |
| Laser wavelength | 1064nm |
| Spot diameter | ф0.10-3.0mm adjustable() |
| Pulse width | 0.2-20ms adjustable() |
| Pulse frequency | 1-50HZ adjustable() |
| Welding depth | ≤1mm |
| Control | Single-chip micro processor |
| Observing system | microscope |
| Cooling system | Water chiller |
| Power supply | AC 220V±10%/50HZ |
| Dimention | 920mm*560mm*1220mm (L*W*H) |
| Weight | 180kg |
Description
The use of high-energy laser pulse on the material within a small area of the local heating, laser radiation energy through heat transfer to the material's internal diffusion, the material melted to form a specific weld pool. It is a new type of welding, mainly for thin-walled materials, precision parts of the welding, can be spot welding, butt welding, welding, sealing welding, high aspect ratio, weld width, heat-affected zone, Small deformation, fast welding speed, smooth weld, beautiful, no need to deal with after welding or simply deal with, weld quality, non-porosity, can be precisely controlled, focused light spot, high positioning accuracy, easy to automate.
Welding characteristics are fusion welding, the laser beam as the energy source, impact on the weld joint.
The laser beam can be guided by a planar optical element (such as a mirror), which is then projected onto the weld by a reflective focusing element or lens. Laser welding machine is non-contact welding, the process does not require pressure, but need to use inert gas to prevent pool oxidation, metal filler occasionally used. Laser welding with MIG welding laser MIG composite welding composition, to achieve penetration welding, while the heat input than MIG welding greatly reduced.
Laser spot welding is one of the important methods of laser material processing technology. The spot welding process belongs to the heat conduction type. That is, the laser radiation heats the surface of the workpiece. The surface heat spreads to the inside through heat conduction. By controlling the width, energy, peak power and repetition Frequency and other parameters, the workpiece melting, the formation of a specific pool. Because of its unique advantages, has been successfully used in gold and silver jewelry processing and micro and small parts welding.
Q: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: Our engineer will do training online. If needed, we will arrange our engineer to your factory for training or you can send the operator training in our factory .
Q: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q: What’s delivery time?
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.
Q: Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
