Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1064nm | Single Pulse Energy: | 90J |
|---|---|---|---|
| Dimensions: | 840x450x500mm | Beam Diameter: | 0.1-3.0mm |
| Power Supply: | 220V±10% /50Hz And 60Hz Compatible | Transport Package: | Standard Plywood Case |
| High Light: | 200W Laser Spot Welding Machine,90J Laser Spot Welding Machine,200W laser spot welder |
||

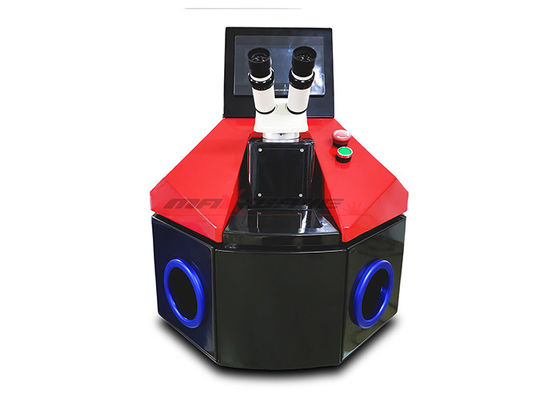

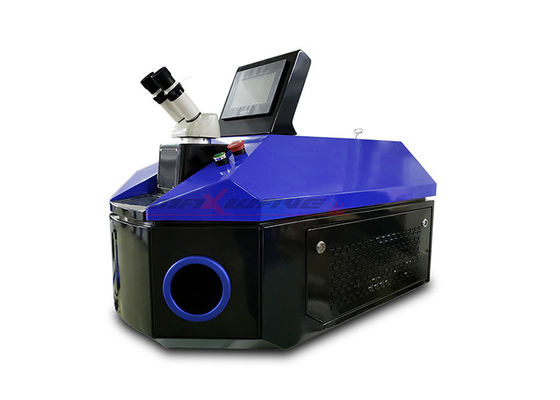

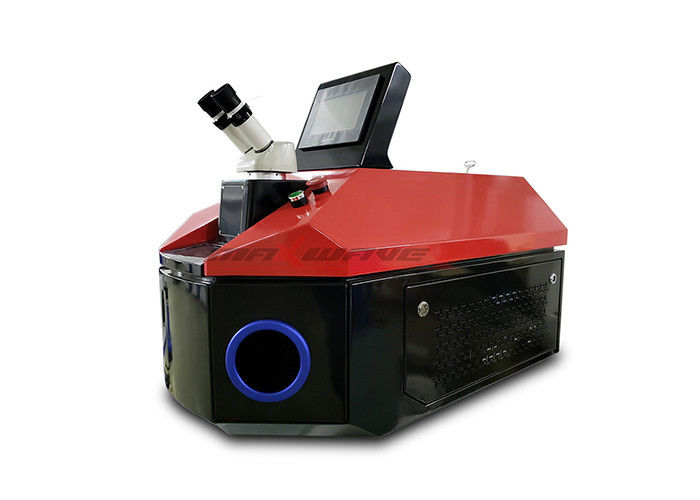

200W Handheld Laser Spot Welding Machine For Gold Silver Jewelry
200W Handheld Spot Gold Silver Jewelry Laser Welding Machine Small Laser CNC Machine
| Product Name | Cheap 200W Portable Mini Spot Gold Silver Jewelry Laser Welding Machine Factory Price | |
| Model No. | MW-DR200 | |
| Laser Source | Nd:YAG | |
| Laser Wavelength | 1064nm | |
| Rated Power | 200W | |
| Laser Energy | 80J | 100J |
| Pulse Width | 0.1-20ms | |
| Pulse Frequency | ≤35Hz | |
| Beam Diameter | 0.1-3.0mm | |
| Power Supply | 220V±10% /50Hz and 60Hz compatible | |
| Observing System | microscope 10X | |
| Chamber Illumination | LED circle lamps | |
| Parameters Memorization | 10 groups | |
| Protection Alert | flow alert | |
| Language Display | China/English | |
| Shield Gas Supply | One line(Argon) | |
| Cooling System | Water chiller | |
| Power Consumption | 6.5KW | 7.5KW |
| Welding Chamber Dimensions | 340mm*540mm*180mm(L*W*H) | |
| Machine Dimensions |
Welder:850mm*500mm*600mm (L*W*H) Chiller:430*370*585mm(L*W*H) |
|
| Running Environment | 5ºC-30ºC, 5%-75% humidity | |
| Net Weight | 150kg(welder)+65kg(chiller) | |
1. Jewelry laser welder is high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2. Laser is quick, Frequency can reach 20HZ.
3. Jewelry,glasses frame,mould,dental teeth need laser welding way which have beautiful welding joints .
4. Jewelry Laser welding machine is widely used in all kinds of metal like gold,sillver,bronze,aluminum.steel and titanium!
5. Laser welding is new product, Buying this product can help you win advanced cleaning market!
6. We manufacture power supply which have big advantage in prices and after sale service.
7. Engineer door to door service.
FAQ:
Q1 : How about warranty?
A1: 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2: I don't know which one is suitable for me ?
A2: Please tell me
1) Your materials.
2) The thickness of your materials.
3) Size of welding line.
Q3: Payment terms?
A3: Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4: Do you have CE document and other documents for customs clearance?
A4: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5: I don't know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual.
update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer
/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
