200W CCD mirco jewelry welder machine Jewelry Laser Spot Beam YAG Welding Welder Machine

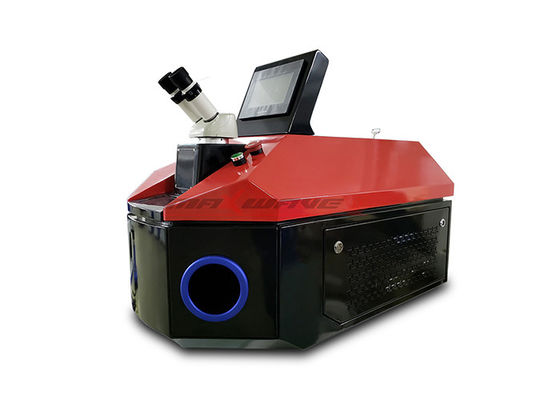

Large Image : 200W CCD mirco jewelry welder machine Jewelry Laser Spot Beam YAG Welding Welder Machine

Product Details:

Place of Origin:	China
Brand Name:	Maxwave
Certification:	CE FCC SGS
Model Number:	MW-JW200W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Case
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	20000/Per Year

Contact Now

Detailed Product Description

Cooling Mode:	Water-cooling	Certification:	CE,SGS
Usage:	Jewelry Welding	Power:	200W 60W
Max Welding Thickness:	0.5mm-ss	Observe:	CCD+Microscope (combined)

Gold Siler Ring Necklace Jewelry Mould Laser Spot Welding Machine

Jewelry Welder Advantages:
1. High-performance laser power supply, single pulse of high power, low power consumption and not hot when welding.
2. It doesn't need to fill the solder, welding fast,spot distributed evenly,the workpieces deformation is small, beautiful
appearance.
3. Ceramic laser cavity imported from internationally famous manufacturers to ensure the machine is high quality and high performance.
4. Unique YAG crystal cooling method to improve the beam quality and xenon lamp lifetime, reducing the use of cost.

Jewelry Welder Datas:

Machine Name	Jewelry laser welding machine
Power Supply	AC220V / 50Hz
Pulse Width	1.00-10.0 Hz
Pulse Width	0.1-10.0ms
Spot Size	0.1- 3.0mm
Power	200w
Pulse Energy	140J
Power Consumption	2Kw
Working Temperature	30℃
Cooling method	Water Cooling
Operation method	Touch control panel
Wavelength	1064nm
Machine Dimension	50KG

200W CCD mirco jewelry welder machine Jewelry Laser Spot Beam YAG Welding Welder Machine 0

200W CCD mirco jewelry welder machine Jewelry Laser Spot Beam YAG Welding Welder Machine 1

RFQ:

If the machine power supply quality is bad, what is problem will happened to laser welder ?
1) The machine easy to miss the focusing
2) The machine lifetime will short more. Maybe 2 years or 3 years need to change
3) The laser energy is not stable, this is because the laser power supply can not offer stable voltage.All we know, YAG laser
machine xenon lamp need to vltage to make high light after through crystal to make laser.
