1.064um Laser Welding Machine For Stainless Steel

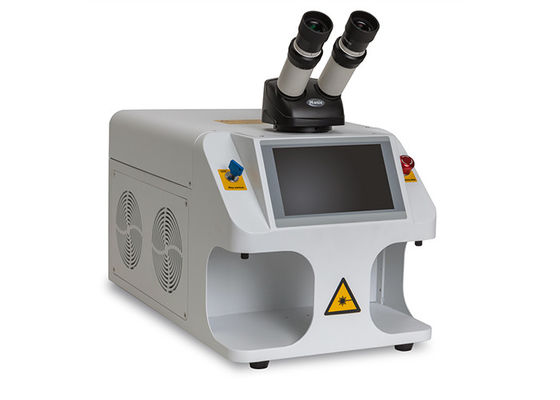

Large Image : 1.064um Laser Welding Machine For Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Maxwave
Certification:	CE FCC SGS
Model Number:	MW-JW200W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Case
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	20000/Per Year

Contact Now

Detailed Product Description

Power:	60W/200W	Usage:	Jewelry Laser Welding Machine
Single Pulse Energy:	40J/50J	Wavelength:	1.064um
Pulse Frequency:	0.1-100Hz	Processing Material:	Gold/silver/titanium/platinum Jewelries
Highlight:	1.064um Laser Welding Machine , 50J Laser Welding Machine , 1.064um mini laser welding machine

1.064um Laser Welding Machine For Stainless Steel

Jewelry Laser Welding Machine Dental Used Jewelry Laser Welder Smith Machines

1. System configuration

Main parts	Brief describing
Laser	Φ7 superior YAG crystal, ceramic focus cavity
Laser power supply	MW-DW200 pulse power supply
Special Cooling System	Unitization special chiller,over temperature alarming,flow protecting.
Control System	Singalchip(pic)
Viewing System	8X microscope viewing system

2.The requirement of the power supply:, AC 220V±10%,4KW

3.Working environment

Clean and far from the source of vibration. Temperature around 10℃~32℃, humidity low than 85%.

4.Continuously workingtime

It can continuously work more than 8hours.

Model	MX-60W	MX-200W
Output power	60W	200W
Laser wavelength	1064nm	1064nm
Pulse frequency	80J	100J
Pulse Width	≤15Hz	≤15Hz
Focal Diameter	0.1-3.0mm	0.1-3.0mm
Rated power	≤5KW	≤5KW
Power supply	AC220V/50-60Hz	AC220V/50-60Hz
Control system	Microchip CPU	Microchip CPU
Cooling system	Internal cooling	Internal cooling

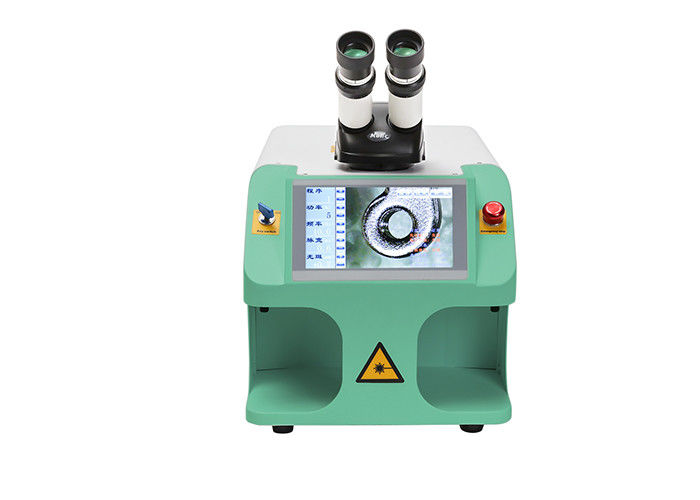

1.064um Laser Welding Machine For Stainless Steel 0

Applications:

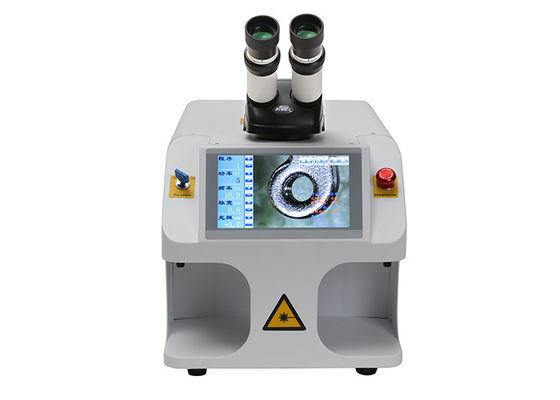

1.064um Laser Welding Machine For Stainless Steel 1
