Product Details:
Payment & Shipping Terms:
|
| Cooling Mode: | Air Cooling | Condition: | New |
|---|---|---|---|
| Application: | Metal Engraving | Laser Power: | 20W 30W 50W 100W |
| Certification: | CE,ISO,SGS | Cutting Thickness: | 0-30mm |
| Cutting Speed: | Difference Material Difference Speed | ||
| High Light: | 170mm*170mm CNC Laser Cutting Machine,SGS CNC Laser Machines,200 Watt Fiber Laser Marking Machine |
||

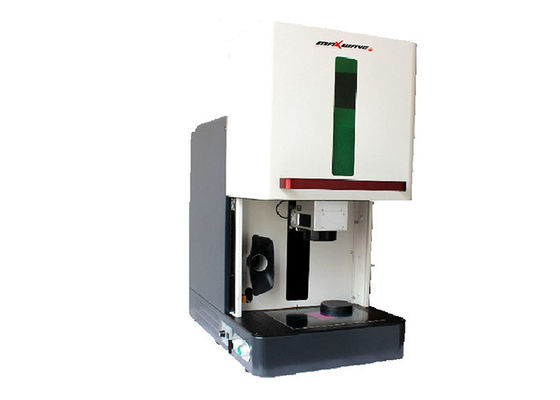

170*170mm CNC Laser Machines 200 Watt Fiber Laser Marking Machine
CNC laser cutting machine 20w /30w/ 50w /100w fiber laser marking machine
Parameter
|
|
Output power |
20W |
30W |
50W |
|
|
Wavelength |
1064nm |
||
|
|
Guide laser |
Red light/655nm wavelength/output1.0mw |
||
|
|
Marking range |
110mm*110mm 200mm*200mm |
||
|
|
Optional marking range |
70mm*70mm/150mm*150mm/170mm*170mm/200mm*200mm/300mm*300mm |
||
|
|
Marking model |
XYZ axis dynamic focusing |
||
|
|
Min line width |
0.03mm |
||
|
|
Marking speed |
≤10000mm/s |
||
|
|
Operate system |
WIN7/WINXP |
||
|
|
Support font |
True type,AUTOCAD,Others |
||
|
|
1D barcode |
CODE39/CODE128/TIF/CODABAR/EAN/UPC |
||
|
|
2D barcode |
QR/PDF417/DATA Matrix(ECC220) |
||
|
|
Support format |
PLT/DXF/DWG/SVG/STL/BMP/JPG/PNG/TIF |
||
|
|
Working environment |
Temperature:10℃-35℃ Humidity 5%/75% |
||
|
|
Power consumption |
Single phase 110v/220v optional/50-60HZ |
||
|
|
Cooling way |
Air cooling |
||
|
|
Control connector |
PCL-Express/USB-2.0 Optional |
||
|
|
Whole machine size |
580mm*750mm*1532mm |
||
Advantages
1. The electro-optical conversion efficiency is high, the whole machine consumes less than 500W, which is 1/10 of the lamp-pumped solid-state laser marking machine, which greatly saves energy consumption.
2. The focal axis position is optimized for deep engraving, suitable for embossment, 3D applications. Deep Marking with high accuracy.
3. No need to carry out any maintenance, fiber laser uselife is about 100000 hours, small size, suitable for work in harsh environments.
4. The whole system adopted the optimization designing of electromagnetic compatibility, with high. signal-to-noise ratio and strong anti-interference ability.
5. 3D laser marking machine Software control system can automatically calculate the arc radian, automatically adjust the focal length.
6. High speed marking speed and perfect marking effects.
7. Marking software is powerful, compatible with Coreldraw, AutoCAD, Photoshop and other software files; support PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font; support automatic coding, print serial number, batch number, date, Bar code, QR code, automatic jump number, etc.
8. Our machine has a variety of power fiber laser, you can get different laser effects ( metals, plastics, ceramics, etc.) on most materials.
9. Small size and compact structure, convenient to move.

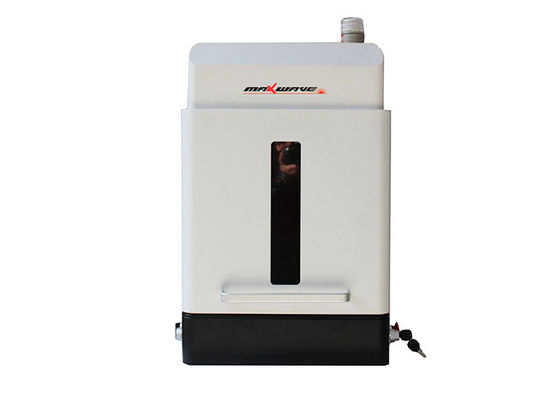

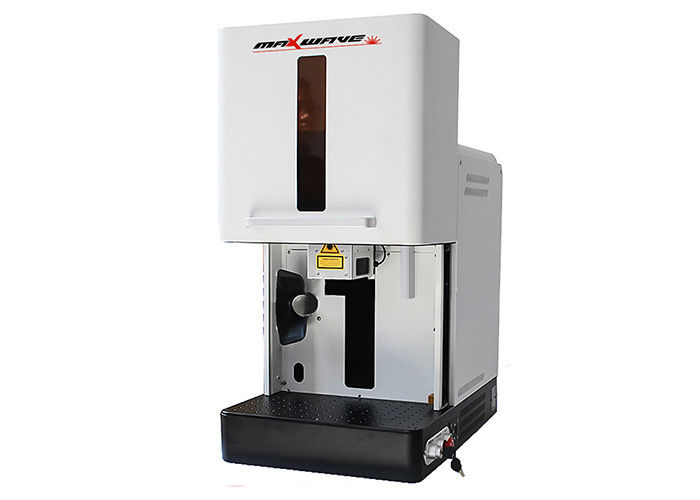

Product detail
Applicable Industry
Widely used in metal and non metal fileds.
Such as automatic parts industry, medical industry, electronic components, IT industry, hardware industry, precision apparatuses, jewelry, crafts, high-low-voltage appliances, packing industry, etc.
Applicable Material
1)Metal material: Such as stainless steel, carbon steel, aluminum,copper,chrome, anodized aluminum,silicon wafer,etc
2)Non metal material: Ceramic, rubber, plastic, leather, cardboard,etc.
FAQ
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction book send to you with machine.If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q: Can I get a machine according to my own requirements?
A: Sure.We can change the type and color and appearance of the machine according to your preferences and requirements, so that we can satisfy you.
Q: If the machine has problem in my place, how could I do?
A: The machine has three years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".
Q: Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory.
