Product Details:
Payment & Shipping Terms:
|
| Application: | LASER CUTTING | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Plastic, Wood |
|---|---|---|---|
| Applicable Industries: | Energy & Mining, Advertising Company | Laser Tube Power: | 60w / 80w / 100w / 130w |
| Air Assist: | Air Pump | Driving Mode: | Step Motor |
| Highlight: | 130 Watts CNC Laser Machines,130 watt laser cutter machine,50000mm/Min Acrylic Laser Cutters |
||

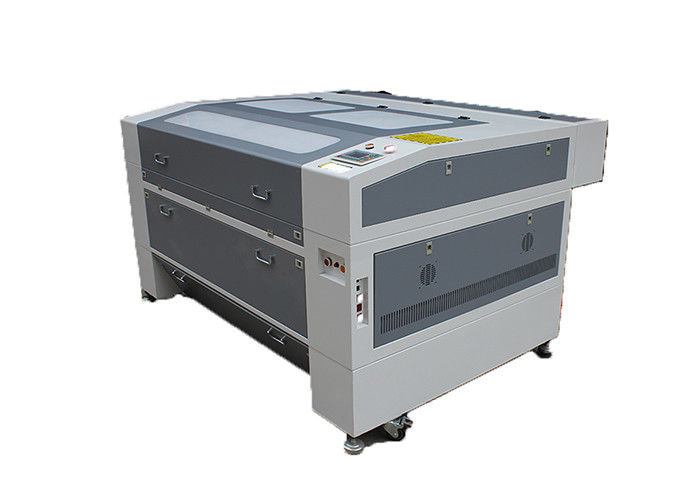

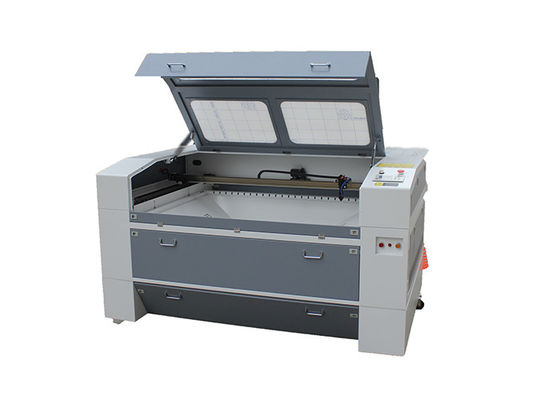

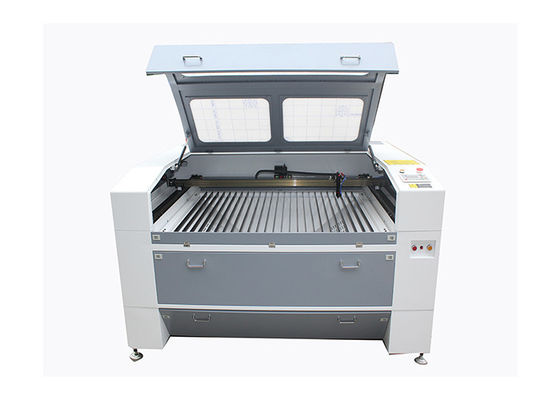

130 Watts CNC Laser Machines 50000mm/Min Acrylic Laser Cutters
Main Features:
1. Imported high-precision linear guide rail transmission makes the optical laser path and movement more stable, and better cutting effects.
2. Advanced DSP control system, high speed, easy operation, high cutting speed.
3. Motorized up-down table optional to allow customers to process thick materials. Red dot and auto focusing optional for easy operation and better working efficiency.
4. We can make double or more laser heads to improve work efficiency.
Applicable Materials:
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials
Application Industries:
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
|
Machine model |
1490 laser cutting machine |
|
Laser type |
Sealed CO2 laser tube, wavelenght:10:64μm |
|
Laser power |
60W/80W/100W/130W/150W/180W |
|
Cooling mode |
Circulating water cooling |
|
Laser power control |
0-100% software control |
|
Control system |
DSP offline control system |
|
Max. engraving speed |
60000mm/min |
|
Max cutting speed |
50000mm/min |
|
Repetition accuracy |
≤±0.01mm |
|
Min. Letter |
Chinese:1.5mm, English:1mm |
|
Table size |
1400*900mm |
|
Working voltage |
110V/220V.50-60HZ |
|
Working conditions |
temperature:0-45℃,humidity:5%-95% |
|
Control software language |
English/Chinese |
|
File formats |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc |
