Product Details:
Payment & Shipping Terms:
|
| Graphic Format: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cooling Mode: | Air Cooling |
|---|---|---|---|
| Control Software:: | Windows CE Embedbed | Core Components: | PLC, Optical Maser |
| Laser Source: | MAX/RAYCUS | Working Voltage:: | AC110v/220V 50/60 Hz |
| High Light: | 10.2Inch Screen CNC Laser Machines,PIPE UV Laser Engraver,PVC UV Laser Engraver |
||

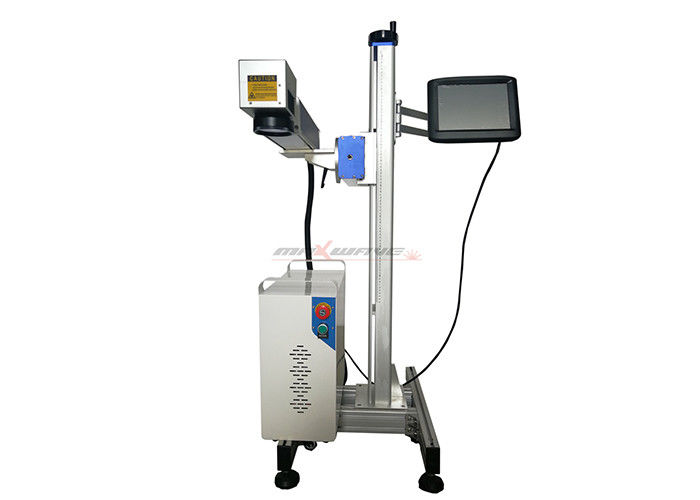

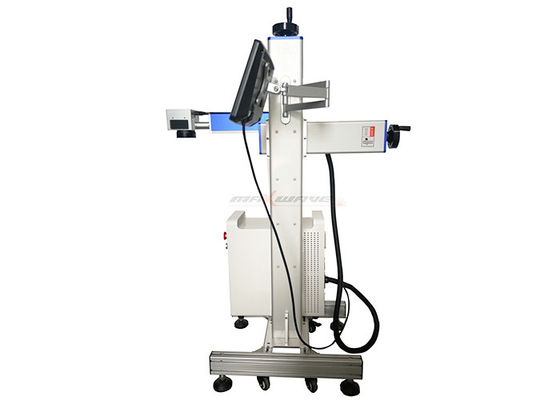

10.2 Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate
molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be
separated from the materialso that the way they work does not produce any heat. This is very different from traditional fiber and
carbon dioxide laser marking machines.
Applications:
Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, constructionmaterials,
special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications
equipment, LCD glass.
|
Fly UV Laser Marking Machine Specification
|
||
|
Name
|
Description
|
Remark
|
|
Laser Gun
|
Solid-state UVLaser
|
JPT/GAIN
|
|
Scanning Galvanometer
|
Professional Digital Scanning Galvanometerwith high speed motor
|
High Speed Motor
|
|
Focus System
|
Two RedLight with accurate position
|
Two Red Light
|
|
Indication System
|
Inner Outline Indication
|
Red Outline Indication
|
|
Cooling System
|
External Water Cooling
|
Water cooling
|
|
Controller Card
|
Integrated Industry Touch Screen
IPS-F6.0 Fly marking system |
10.2 Inch Touch Screen for Fly Marking
|
|
Fly Laser Marking Machine Technical Parameter
|
|
|
Model
|
|
|
Laser Power
|
3W
|
|
Laser Wavelength
|
355nm
|
|
Laser Frequency
|
10K HZ-100KHZ
|
|
Linear Speed
|
8000mm/s max
|
|
Marking Size
|
110*110mm (other size available)
|
|
Min Font Height
|
0.1 MM
|
|
Min Linewidth
|
0.01 MM
|
|
Repetition Accuracy
|
±0.02 MM
|
|
Marking Depth
|
≤5 MM (Depend on the material)
|
|
Overall Power
|
≤2000W
|
|
Overall Dimension
|
780*600*1450MM
|
|
Weight
|
Around 87 KG
|
|
Power Supply
|
220V/50HZ/5A/1P
|
|
Cooling System
|
External cooling system ( water tank)
|
|
Operation System
|
IPS-F6.0 Professional marking software
|
|
Control Interface
|
Standard USB Interface
|
|
File Format Support
|
Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases. Support most language and all type input. |
|
Work Environments
|
Temperature:10-40℃,Humidity:10%-90% No Condensation
|
Printing Samples:
