Product Details:
Payment & Shipping Terms:
|
| Cooling Mode: | Water Cooling | After-sales Service Provided: | Manual And Guide Vedio |
|---|---|---|---|
| Max. Laser Power: | 60W | Facula Diameter: | 0.1-3.0mm |
| Language: | 8 Languages | Usage: | Jewel，Earring，Necklace |
| Microscope: | 8X Lens | ||
| Highlight: | 100J Gold Laser Welding Machine,100J Laser Welding Machine,100J laser spot welding machine |
||

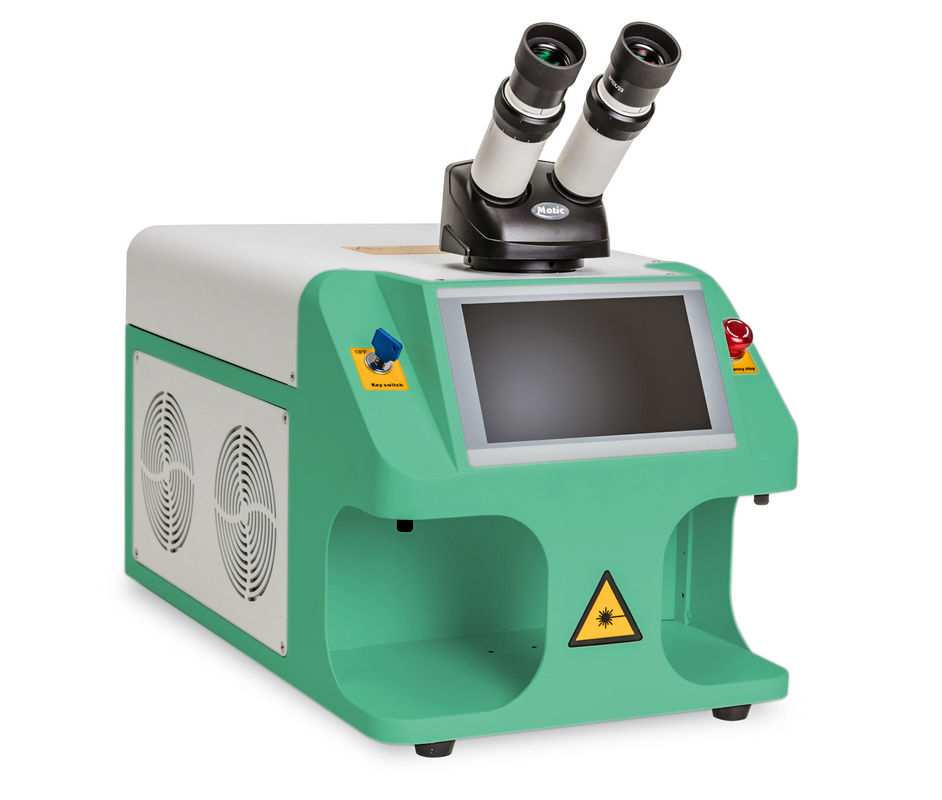

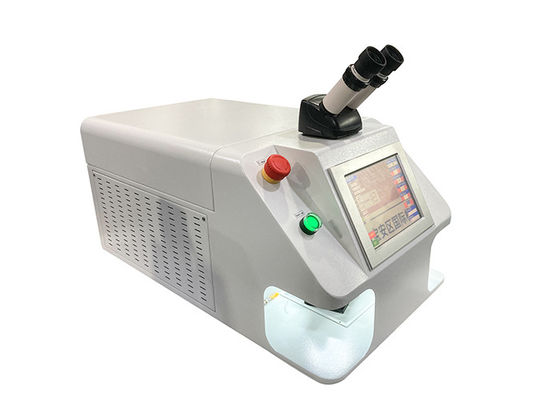

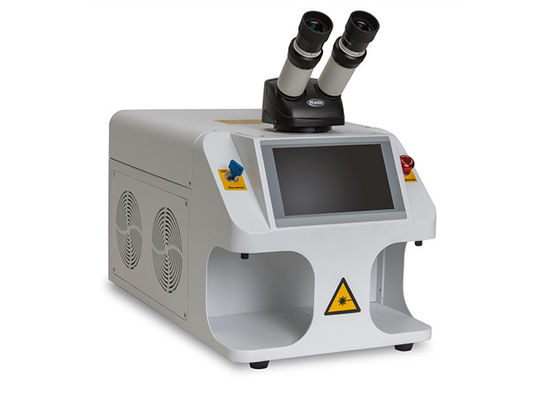

100J Gold Laser Welding Machine 8X Lens Water Cooling Single Phase
Advantages:
1. Our company developed high-performance laser power supply, making a single pulse of high power, low power consumption and not hot when welding.
2. It doesn't need to fill the solder, welding fast,spot distributed evenly,the workpieces deformation is small, beautiful appearance.
3. Ceramic laser cavity imported from internationally famous manufacturers to ensure the machine is high quality and high performance.
4. Unique YAG crystal cooling method to improve the beam quality and xenon lamp lifetime, reducing the use of cost.
Welding Material:
Platinum, Karat Gold, Silver, Titanium, Stainless Steel, Copper, Aluminum, other metal and alloy.
Application Area:
Widely applicable to all kinds of micro parts of precision welding, such as Jewelry, electronics, Dental, watches, military.
Usage:
Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
Parameter Description:
| Output Power | 100 W I 200 W I 300 W – based on requirement |
| Single-pulse energy | 0-100 J |
| Machine Design Type | Desktop Vertical |
| Laser Source | ND: YAG |
| Laser Wavelength | 1064 nm |
| Pump lamp | Pulsed Xenon Lamp |
| Pulse Width | 0.1.15 ms adjustable |
| Pulse Repeated Frequency | 1 — 20 Hz adjustable |
| Welding spot diameter | 0.2-1.5 mm adjustable |
| Observing System | Microscope I CCD – based on requirement |
| Cooling System | Water chiller |
| Power Supply | Single Phase AC 220V ± 10%, 50Hz I 60HZ, 4 KW |
| Running Environment | Temperature 5°C-28°C Humidity 5%-70% |
